Ford Ranger (2018-2021) TWIN Raptor Ranger 2.0L Bi-Turbo 4" Stainless Steel Snorkel Kit - Meredith Metalworks available on AfterPay. We deliver New Zealand wide!
Ford Ranger (2018-2021) TWIN Raptor Ranger 2.0L Bi-Turbo 4" Stainless Steel Snorkel Kit - Meredith Metalworks

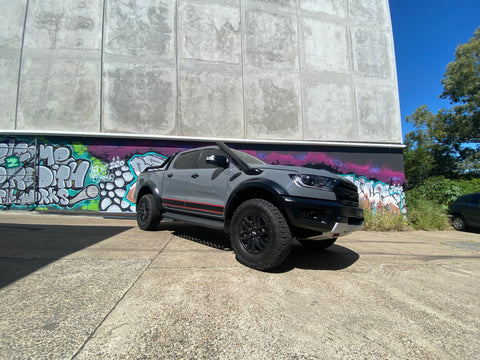

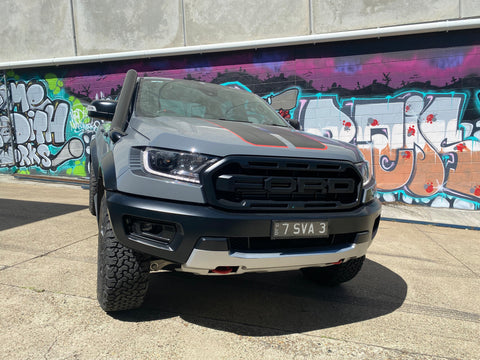

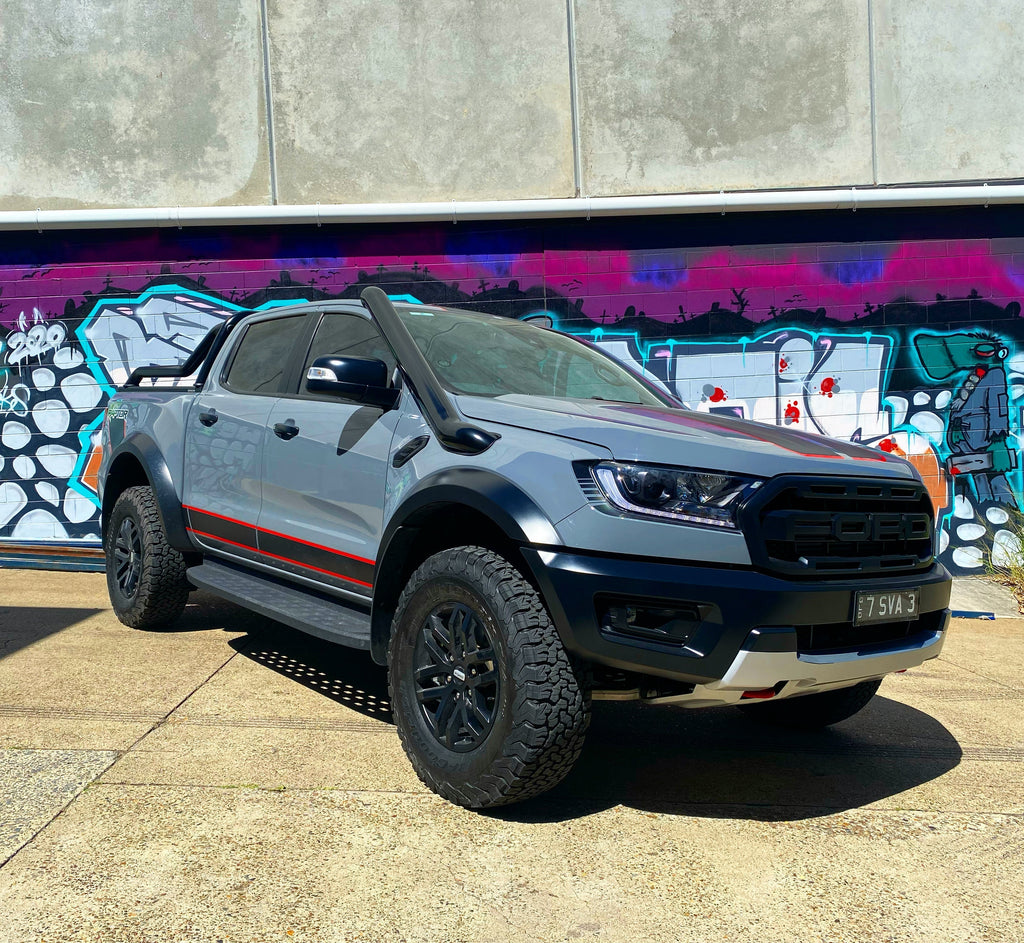

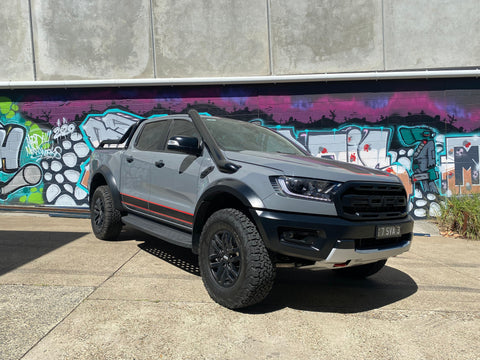

Maximise airflow and engine protection on your Ford Ranger (2018-2021) with this 316L stainless-steel snorkel from Meredith Metalworks, supplied by PPD Performance. Built for high-flow intake, durability and serious off-road performance.
This kit comes with 2x Snorkels.
The second snorkel in this kit is a DUMMY ONLY.
We have made this design to fit to the standard airbox without any modification, meaning it doesn't void your warranty.
This product is made to fit
- Raptor Ranger
- 2018-Current
- Automatic
- 4cyl 2.0L Turbo Diesel
What Your DIY Snorkel Kit Contains
-
2x Mirrored 4" Hand Crafted High Quality Stainless Steel Snorkel with Laser Cut Stainless End Cap and Mount Attached
-
All Fitting Hardware
-
2x Guard Templates (Our snorkels are made to be recessed into the guard making them follow the body lines with a sleek finish)
-
Full installation hardware included where required.
Fitting complexity level: 5/10 (2.0L)
Please Note Please take note of wait times posted at top of web page
For urgent orders please contact us. Fees may apply.
ALL PRICES ARE SUPPLY ONLY AND DO NOT INCLUDE POSTAGE OR FITTING COSTS
Meredith Metalworks products proudly supplied by PPD Performance.
Important Note About Meredith Metal Works Products
Please note that all Meredith Metal Works products are made to order in Australia. The average production lead time is 8–12 weeks, plus postage time.
We kindly ask that you factor this timeframe into your purchase decision, as orders cannot be cancelled once placed due to the custom-made nature of these products.
Fitting & Installation
Do you offer fitting services?
Yes — fitting is available at PPD Performance. Please contact us for a quote and to arrange installation at our Bibra Lake workshop.
What’s the difference between short and long entry snorkels?
Short entry runs straight down from the pillar into the guard.
Long entry adds a leg before entering the guard. Both connect to the factory airbox — the difference is mostly aesthetic and personal preference.
Water & Rain Protection
How do your snorkels handle rain and water ingress?
All snorkels work under vacuum, so minor water entry is normal. Factory airboxes are designed with drain points to remove any water that gets in. Snorkel socks (oiled pre-filters) can be fitted during heavy rain to reduce water intake. Meredith Metal Works also offers a water diverter, which uses airflow dynamics to direct water to the snorkel walls, allowing it to drain safely away.
Snorkel Materials & Maintenance
Why does my polished snorkel show rust or “tea staining”?
All Meredith snorkels are made from 316L marine-grade stainless steel, but microscopic surface grooves can trap contaminants. To maintain a polished finish
- Clean using Autosol or similar metal polish.
- For stubborn stains, use a decontaminant spray (available from Meredith Metal Works).
- Finish with wax or a protective coating to prevent future staining.
Do you offer snorkel replacements?
Yes, for selected vehicles: 80 Series (Safari only), D22, GU Patrol, and 76 / 78 / 79 Series LandCruiser. Note: Mounting holes may vary slightly between snorkel brands or versions, so perfect alignment isn’t guaranteed.
Production & Delivery
How long will my order take?
All Meredith Metal Works products are made to order in Australia. Please allow 8–12 weeks for production, plus postage time. Because each snorkel is custom fabricated, orders can’t be cancelled once placed.
How is shipping calculated?
Shipping costs are based on product size and delivery location.
