Upgrade your Toyota Hilux N80 GUN126 4WD with Bilstein B6 monotube suspension, prepared for the way your ute is used in New Zealand. The B6 gas-pressure design helps control body movement and improve composure over corrugations, rough roads and everyday driving. Spring choice should reflect the accessories and permanent load carried by the vehicle.

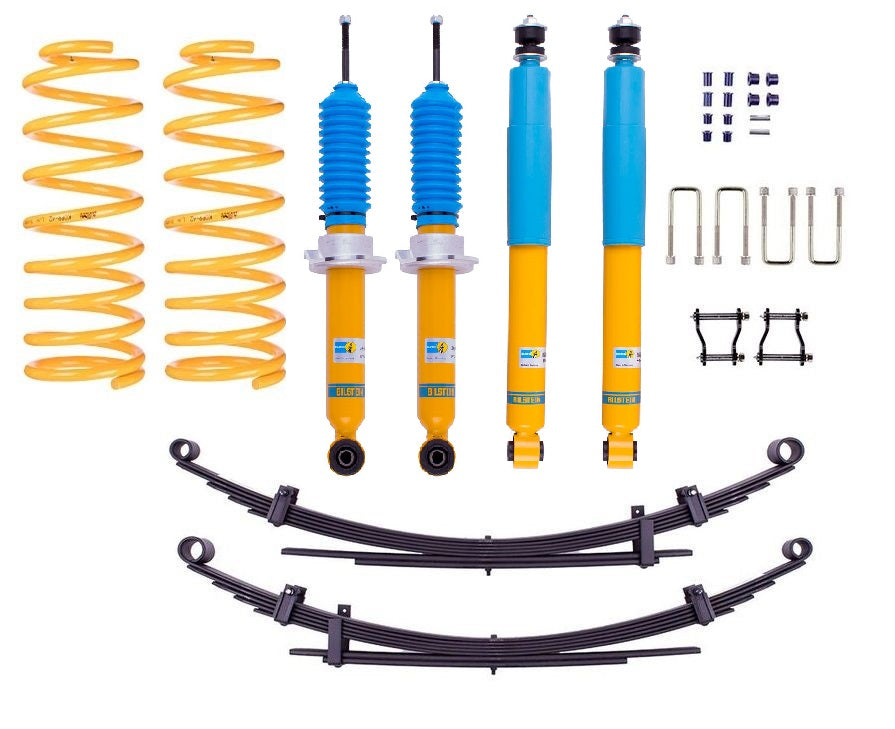

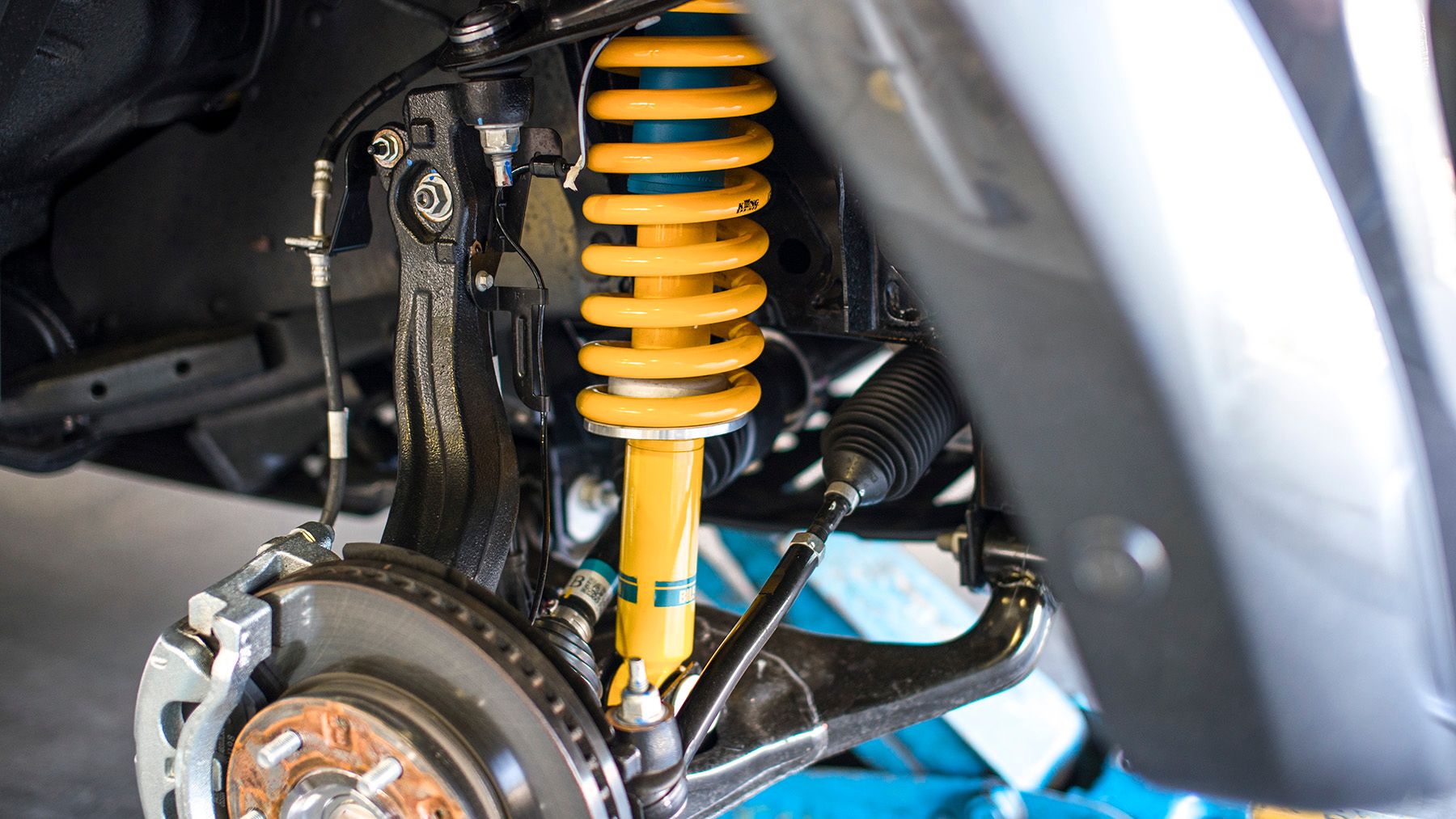

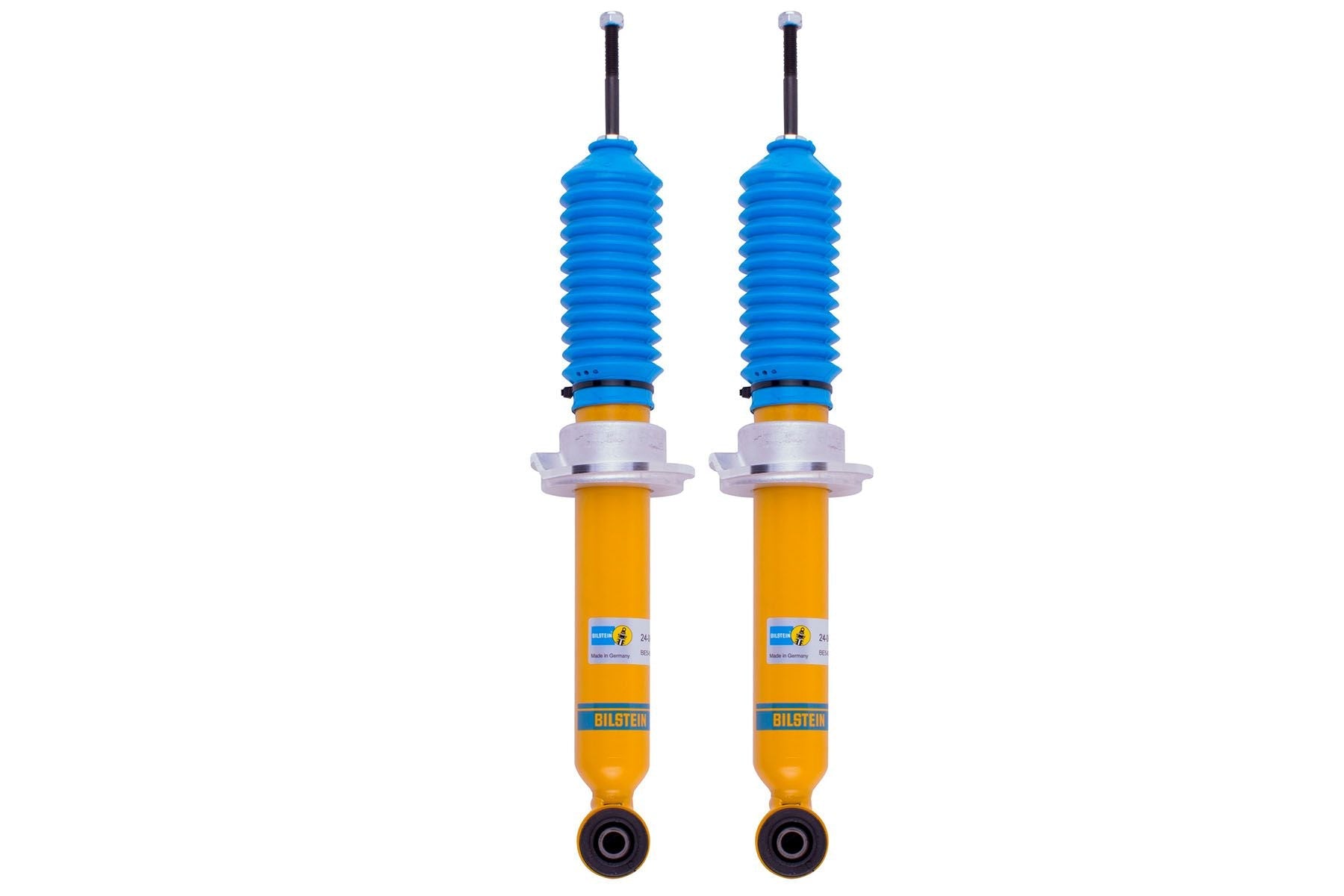

The front struts are supplied fully assembled by Wilkinson Suspension in Australia with Bilstein B6 dampers, King Springs, new top mounts and assembly labour already included. These are not supplied as separate loose front components.

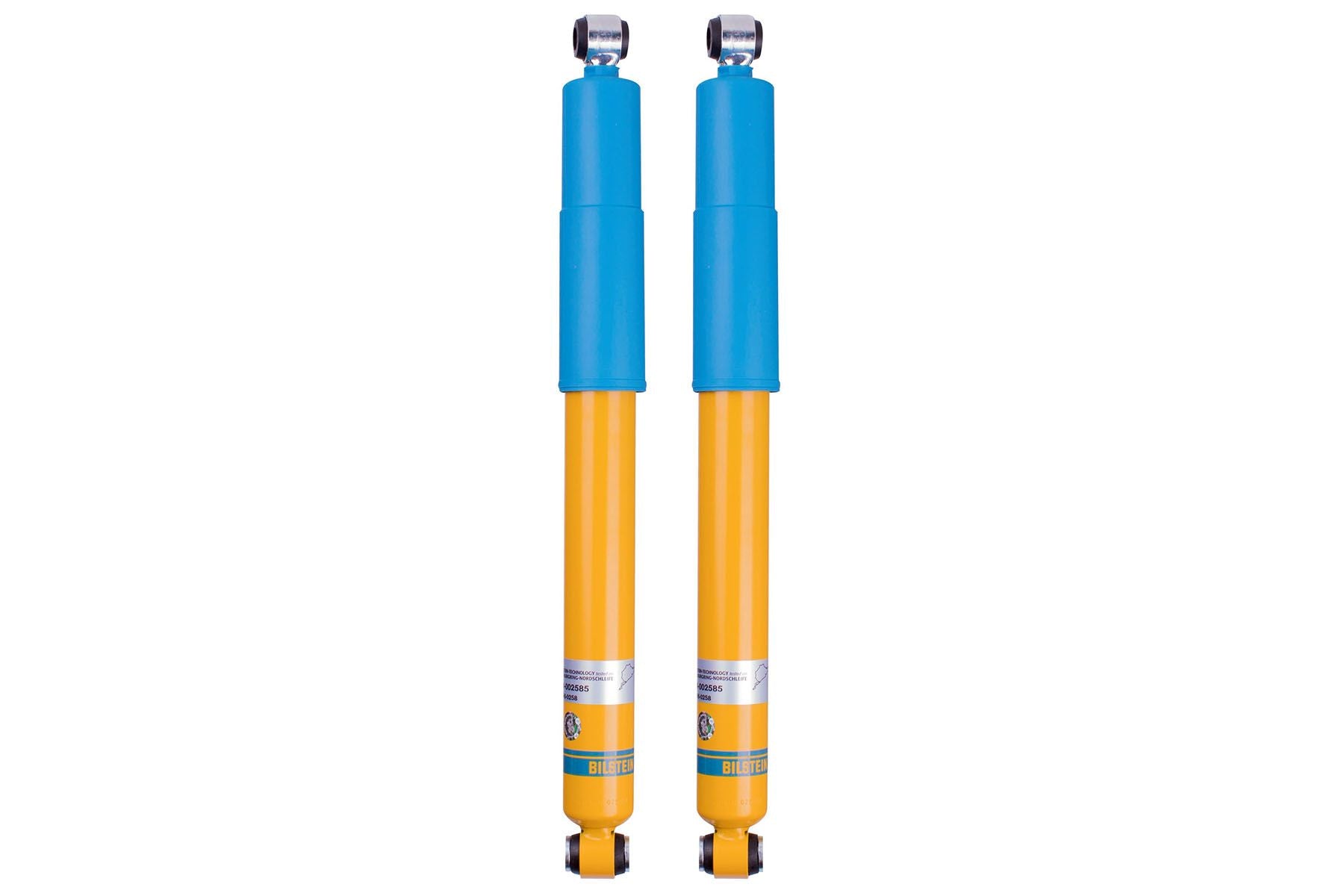

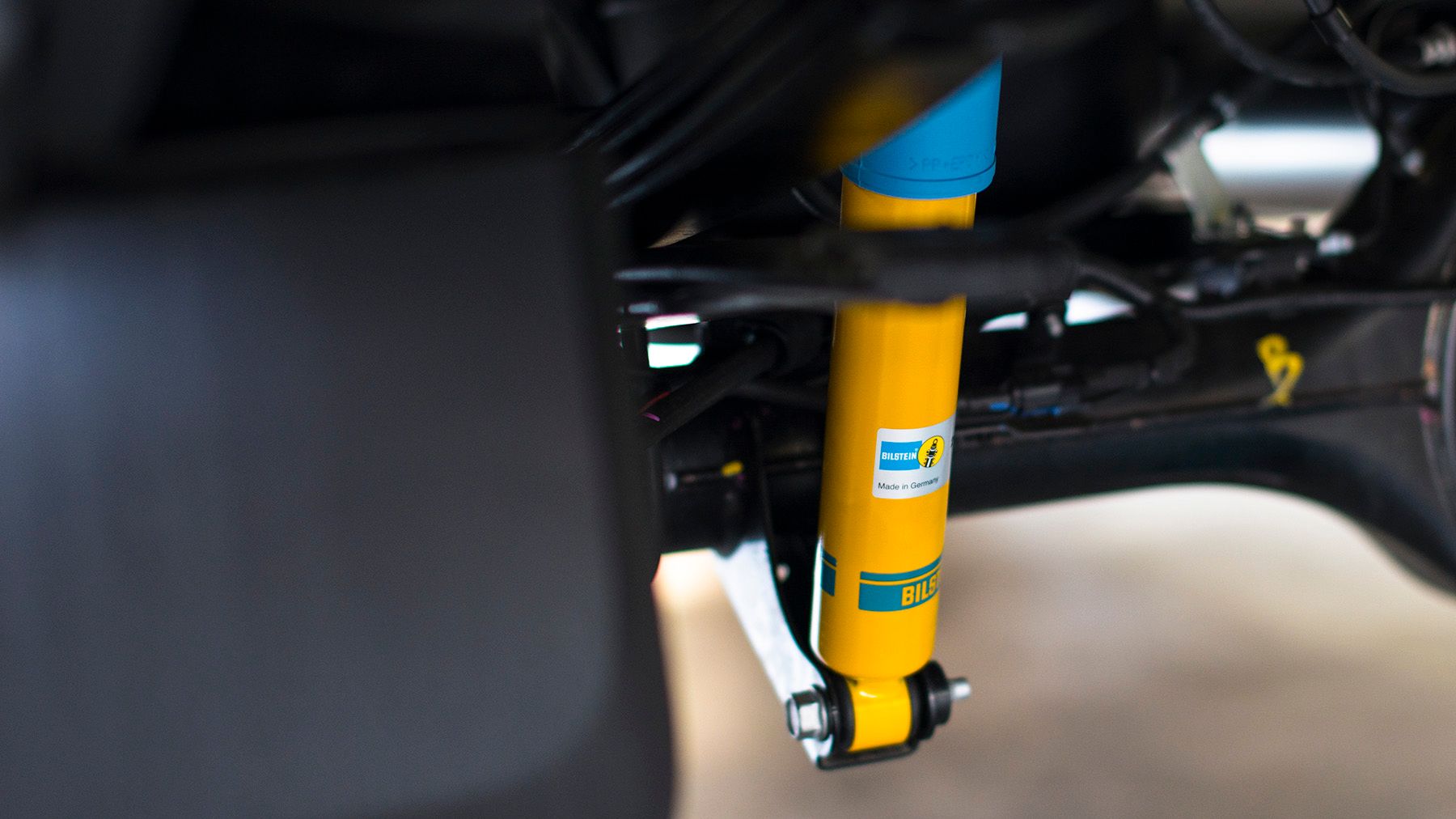

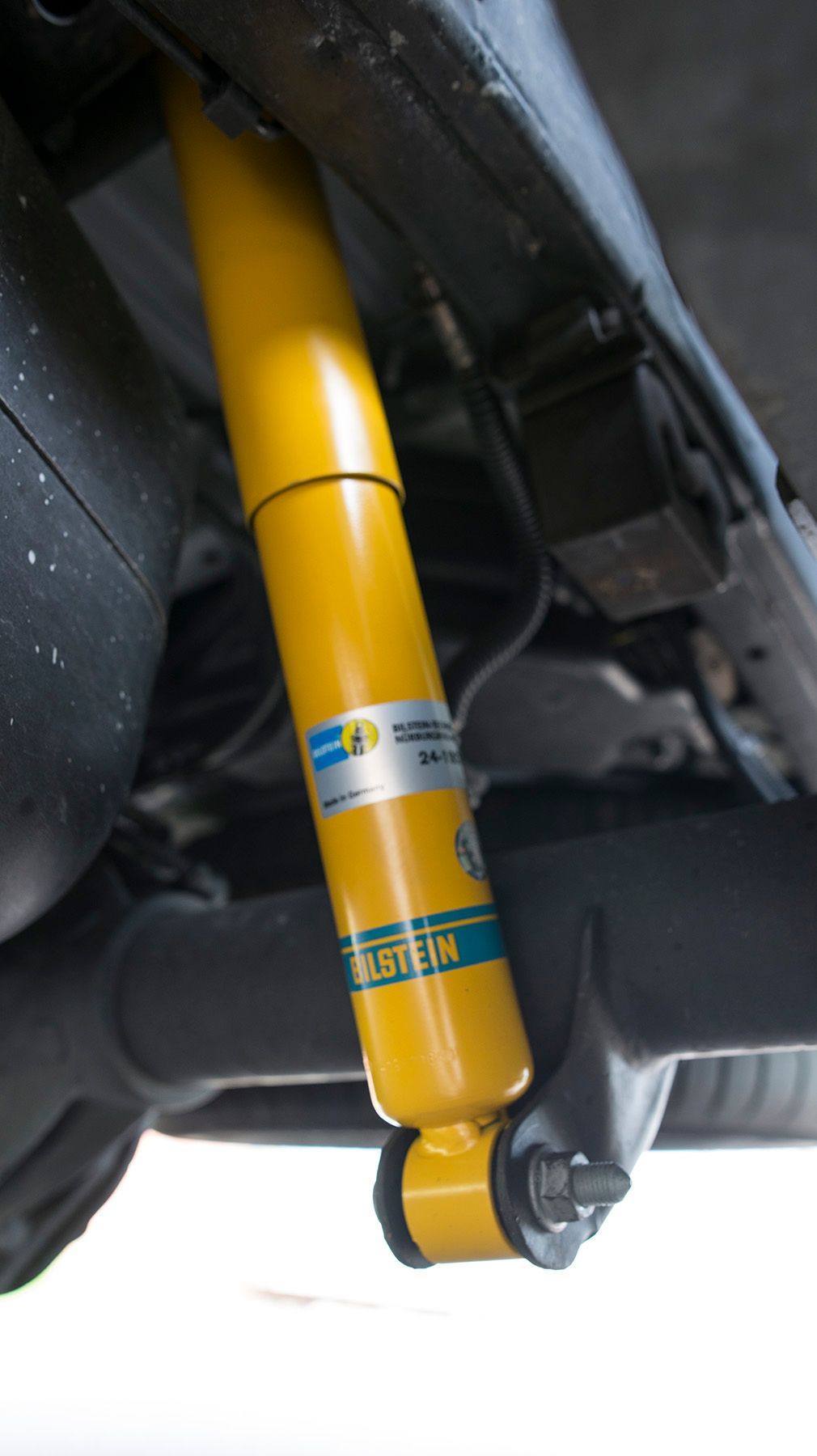

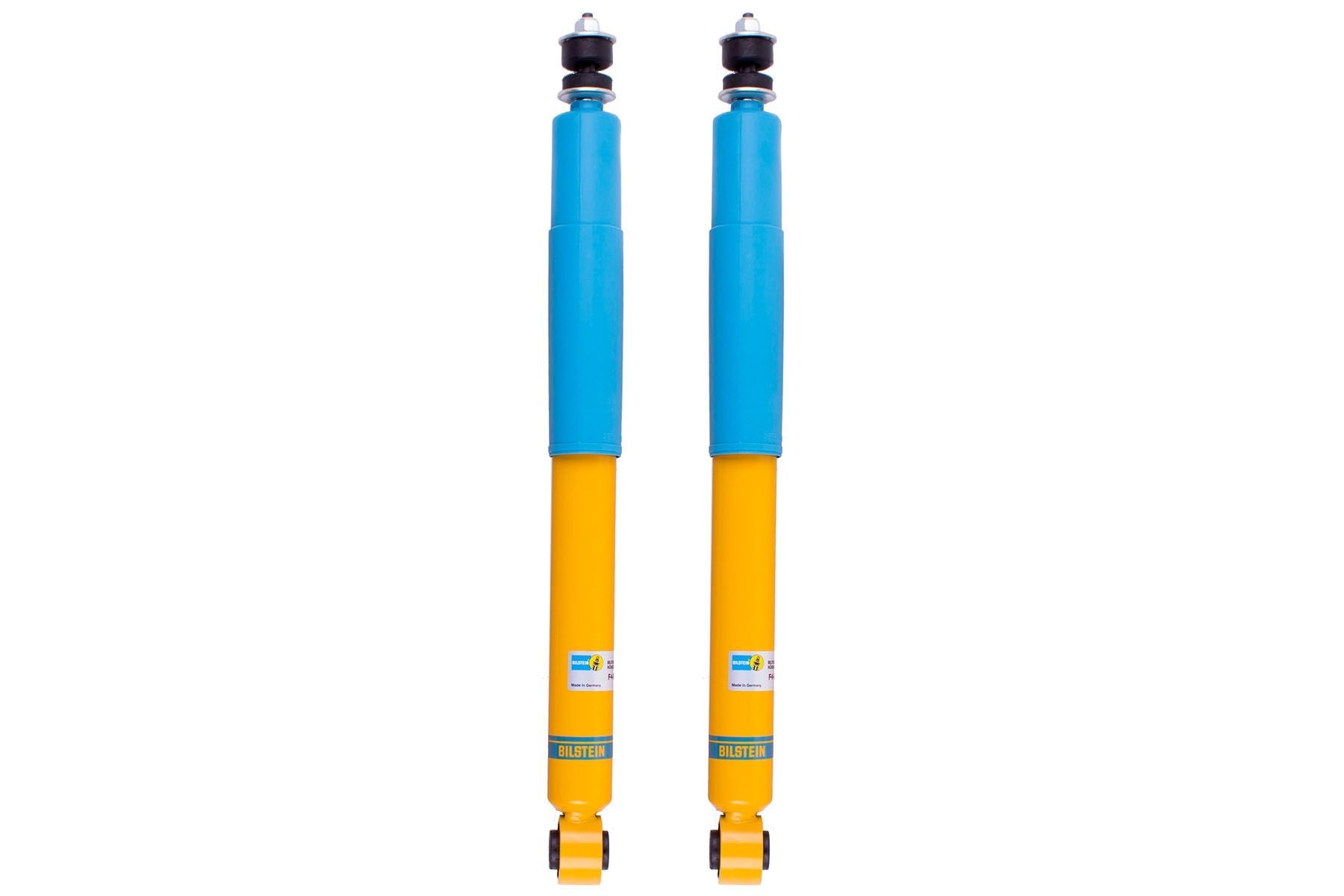

The rear combines Bilstein B6 shocks supplied from Australia with RAW 4x4 raised leaf springs and matched fitting components sourced locally through Autolign New Zealand. This avoids importing bulky rear leaf packs with every order and allows selection for permanent rear loads.
Front spring recommendations are based on King Springs raised-coil application ranges; verify final constant front axle load and spring selection before dispatch.
These N80 RAW springs are approximately 40 mm raised at the rear, subject to the vehicle and its permanent load. Do not use rear spring load ratings as a GVM or axle-rating increase.
Approximate 50 mm front lift. Rear leaf spring lift is approximately 40 mm, not a guaranteed 50 mm. Ride height depends on permanent load and the condition of the vehicle.
For applicable Toyota Hilux N80 GUN126 4WD models, subject to year and suspension specification. Excludes special wide-track Rogue / GR Sport applications unless independently confirmed. A professional alignment and suspension travel inspection are recommended. Check current NZ Low Volume Vehicle (LVV) requirements before fitting modified suspension, especially above 50 mm.
Wilkinson Suspension components come from Australia; RAW leaf springs and fittings are sourced in New Zealand. Contact PPD Performance NZ for current availability, collection and dispatch options throughout the North and South Islands. Assembly, installation, certification and ancillary corrections not explicitly listed are not included in the purchase.
