    Toyota Hilux (2005-2015) KUN N70 Front suspension lift kit 50/75mm + Rear shocks - Bilstein B6

    Regular price
    $2,860.00
    Sale price
    $2,860.00
    Regular price
    Sold out
    Unit price
    per
    Shipping calculated at checkout.

    PRODUCT DESCRIPTION

    Toyota Hilux (2005-2015) KUN N70 Front suspension lift kit 50/75mm + Rear shocks - Bilstein B6

    Give your Toyota Hilux N70 KUN26 4WD more confident road manners and suspension control with a Bilstein B6 suspension package from PPD Performance NZ. Bilstein gas-pressure dampers help manage bounce and body movement over uneven roads, gravel, corrugations and off-road tracks. Select the front springs and rear constant-load rating that suit your Hilux and the equipment you regularly carry.

    Bilstein B6 damping and assembled front struts

    The front strut assemblies are supplied fully assembled by Wilkinson Suspension in Australia, with Bilstein B6 struts, matched King Springs raised front coils, new top mounts and assembly labour. You receive assembled units rather than loose front strut parts.

    This package includes two assembled front Bilstein struts plus two Bilstein rear shocks. RAW rear leaf springs, rear spring bush kits and U-bolts are not included in this front-and-rear shock package.

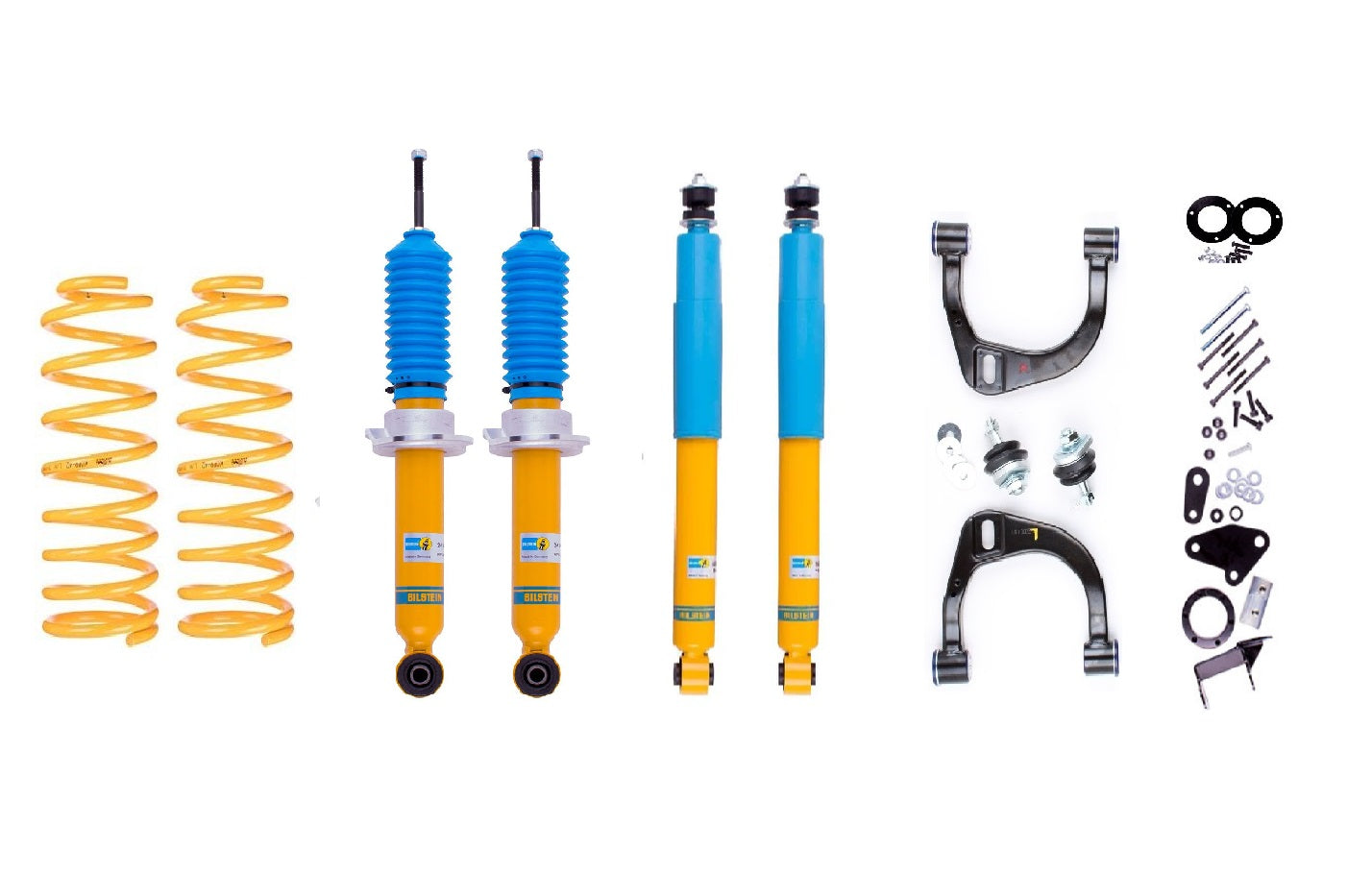

    Exactly what is included

    • 2 × fully assembled Bilstein B6 front strut assemblies, with matched King Springs front coils and new top mounts
    • 2 × Bilstein B6 rear shock absorbers (BIL-BE5 D564)
    • Choose the approximately 50 mm front configuration without correction components, or the approximately 75 mm front configuration including CSS04-15 spacer pair, DDHIL differential drop and UCA HILUX adjustable upper arms

    Front accessory load options

    • No accessories / LI: KTFR-101 raised front springs
    • Steel bullbar / ME: KTFR-101H front springs, selected for the relevant accessory load
    • Steel bullbar and winch / EX: KTFR-101HHD front springs for heavier front accessory load

    Choose 50 mm or 75 mm front lift

    50 mm: No coil strut spacer, differential drop or aftermarket upper control arms are included.

    75 mm: Includes CSS04-15 spacer pair, DDHIL diff drop and UCA HILUX/UCA04 upper control arm pair. Check travel, CV angles, steering geometry and LVV requirements.

    Fitment and NZ supply

    For applicable Toyota Hilux KUN26 / N70 4WD vehicles (2005–2015). Confirm the exact vehicle, front accessories and permanent rear loads before ordering. Actual lift depends on vehicle setup and installation. Check New Zealand LVV certification requirements for your intended configuration, particularly higher lifts; professional installation and alignment are recommended.

    Wilkinson supplies the assembled front struts, rear shocks and the 75 mm geometry components where selected. PPD Performance NZ sources the RAW rear leaf packs and fitting components locally through Autolign. Current availability and collection or dispatch arrangements within New Zealand depend on component supply.

    Installation, alignment, certification and other correction parts not expressly listed are not included.
