    Toyota Hilux (2005-2015) KUN N70 3" front / 2" rear suspension lift kit - A1 Platinum Fox Tour Pack

    Build a more capable, more composed Hilux with the A1 Platinum FOX Tour Pack from PPD Performance NZ. This premium suspension package combines Australian-supplied CalOffroad Platinum / FOX 2.0 front coilovers and FOX 2.0 Performance Series rear shocks with NZ-sourced RAW 4x4 leaf springs. Choose springs matched to your front accessories and the weight you regularly carry in the back.

    Refined on-road ride, confidence off-road

    FOX 2.0 damping is designed to manage suspension movement across broken bitumen, corrugations and uneven off-road terrain. The pre-assembled front coilovers combine FOX shock performance with matched tapered-wire coils, while FOX rear shocks and load-selected RAW leaf packs help control the rear axle under touring, work and everyday loads. Actual comfort, handling and ride height depend on accessories, tyres, load and installation.

    Choose the right front and rear load rating

    Select a lighter front setup for a Hilux without heavy accessories, a medium spring for a steel bullbar, or the heavier front option for a steel bar and winch. At the rear, choose based on permanent/constant carried weight rather than occasional maximum payload. A suspension lift does not increase the manufacturer's GVM or axle load limits.

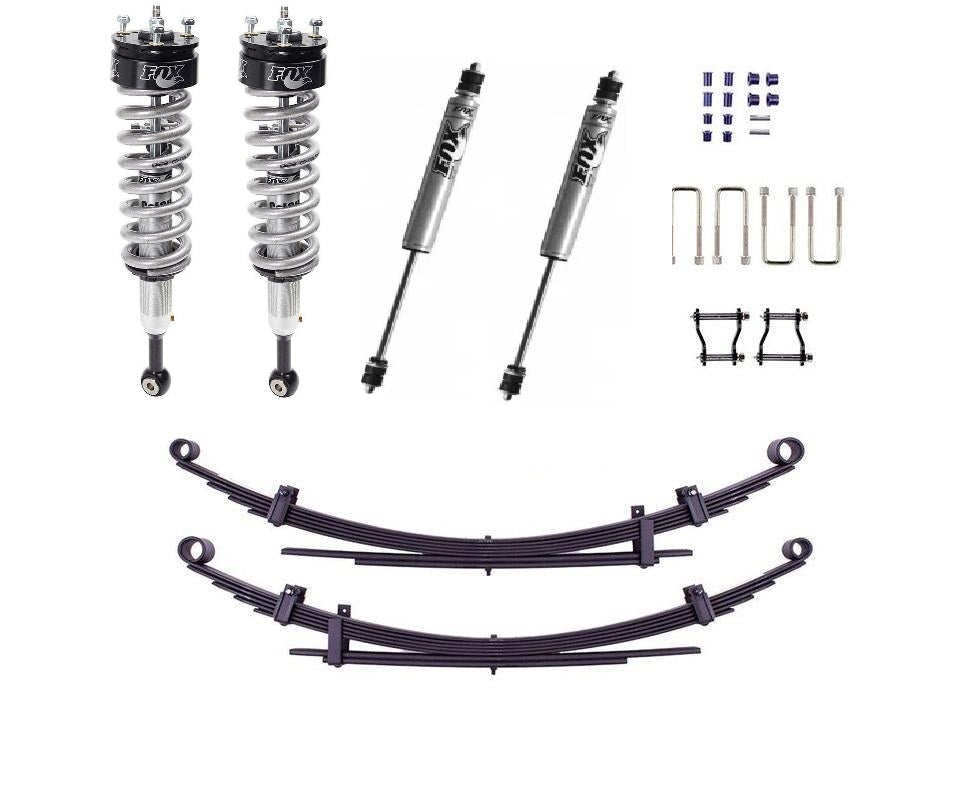

    What is included

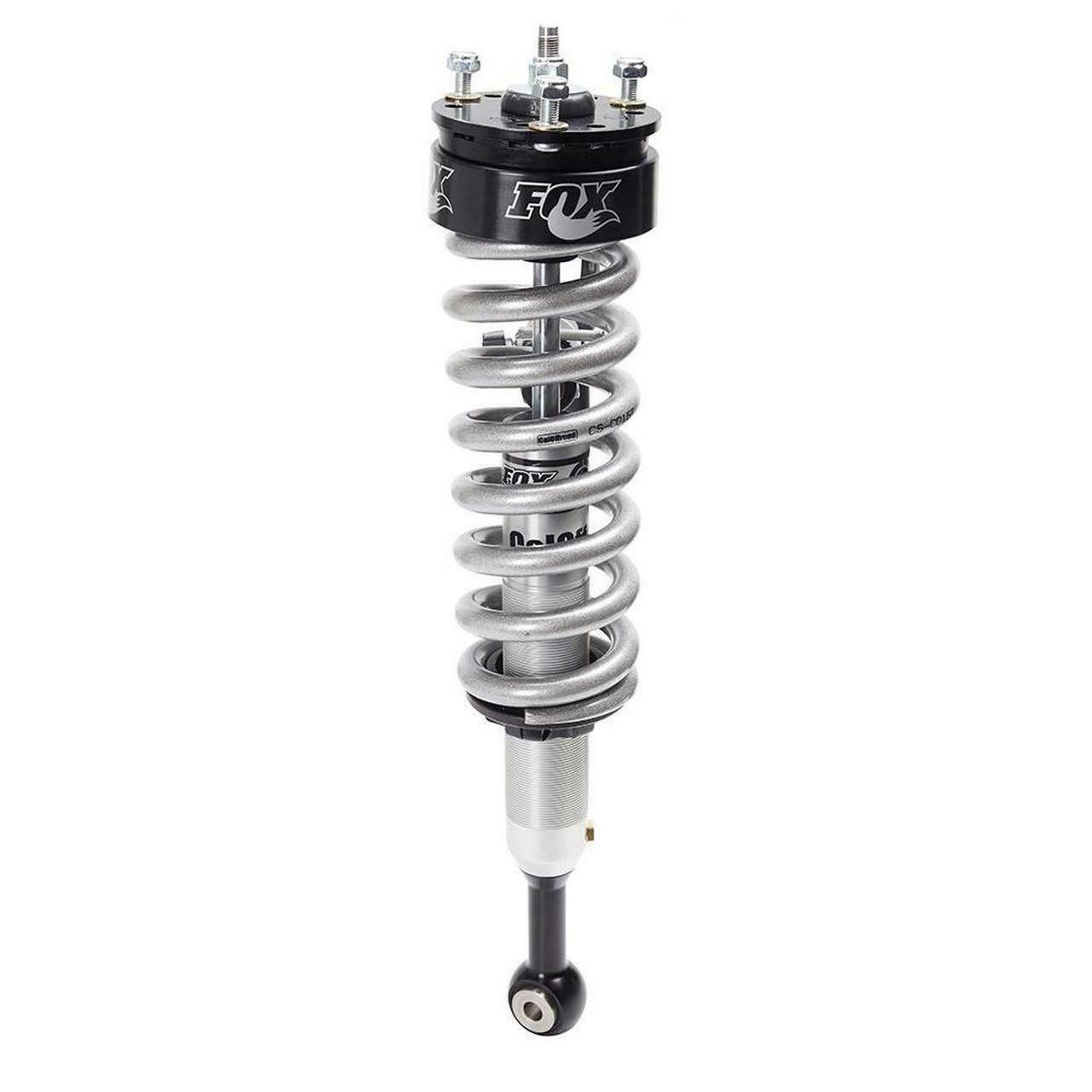

    • 2 × assembled CalOffroad Platinum / FOX 2.0 front coilovers with matched coil springs. No separate front coils need to be purchased.

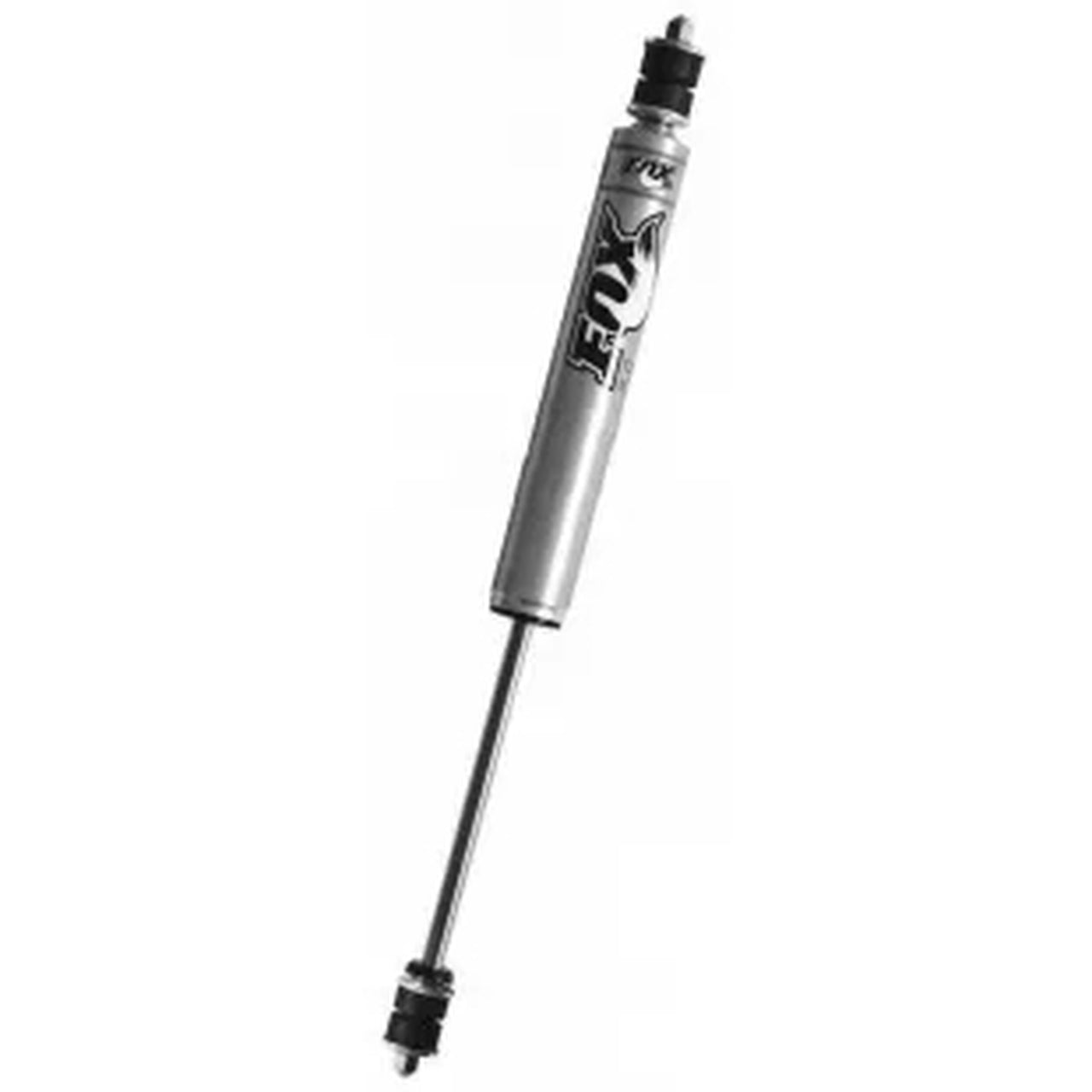

    • 2 × FOX 2.0 Performance Series IFP rear shock absorbers (part number 985-24-075).

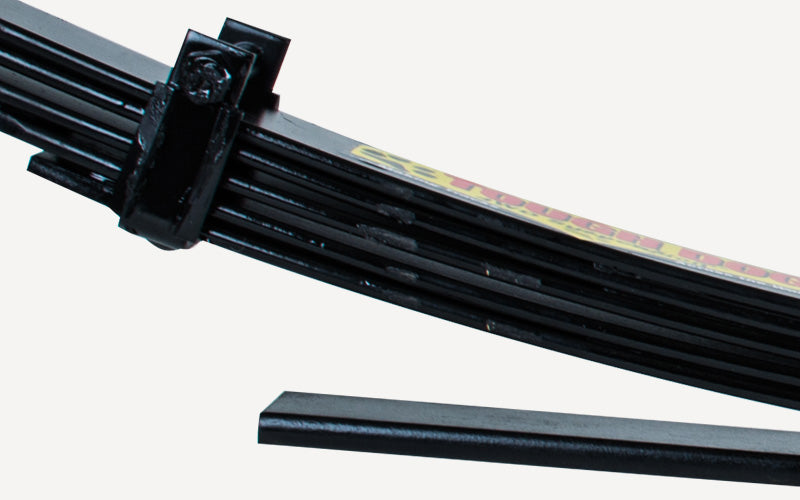

    • 2 × RAW 4x4 rear leaf springs sourced locally through Autolign NZ, in your selected rear load rating.
    • Correct matching rear spring mounting components, including the specified bush/shackle fitting kit and, where required, U-bolts. Only one fitting kit is included per kit.

    Front accessory configurations

    • No accessories / Light Duty: 2 × CO024-LI-3I pre-assembled front FOX coilovers
    • Steel bullbar / Medium Duty: 2 × CO024-ME-3I pre-assembled front FOX coilovers
    • Steel bullbar and winch / Extra Heavy Duty: 2 × CO024-EX-3I pre-assembled front FOX coilovers

    RAW rear leaf options and hardware

    • 0–200 kg: 2 × RAW RL877 rear leaves, KIT096SK plus 4 × U005 U-bolts
    • 200–400 kg constant: 2 × RAW RL878 rear leaves, KIT096SK plus 4 × U005 U-bolts
    • 400 kg+ constant: 2 × RAW RL969 rear leaves, KIT096SK plus 4 × U005 U-bolts

    Lift height and vehicle fitment

    Vehicle: Toyota Hilux N70 KUN26 (2005–2015) 4WD. The FOX front coilovers are configured for a nominal approximately 75 mm (3 inches) front lift, while the RAW rear springs provide approximately 40–50 mm (around 2 inches) of rear lift. This is not a 75 mm rear lift. Actual lift varies with accessory weight, loading, age and condition of the vehicle.

    For the higher front lift, upper control arms and differential-drop components may be required to maintain suspension geometry. They are not included unless separately specified in your selected kit. Confirm vehicle configuration and suspension fitment before ordering. Professional fitment and wheel alignment are recommended. Modified suspension may require Low Volume Vehicle (LVV) certification in New Zealand depending on the vehicle and modification; confirm requirements before purchasing.

    PPD Performance NZ supply

    FOX front and rear components are supplied from Australia, while the bulky RAW rear leaf springs and matching fitting components are sourced locally through Autolign in New Zealand. This mixed-source approach allows you to select the rear load rating suited to your Hilux without importing every leaf pack from Australia. Ask PPD Performance NZ about current lead times, collection and North or South Island freight.

    Installation, alignment, certification and additional geometry-correction components are not included unless stated separately. Availability and dispatch depend on the selected components.
