Toyota Hilux (2005-2015) KUN26R (Coil/Leaf) 4/05-15 1 x Pair Rear Leaf Springs Tough Dog Leaf Springs (Pair) available on AfterPay. We deliver Australia-wide! – Sydney, Brisbane, Melbourne, Adelaide & Perth.
Description

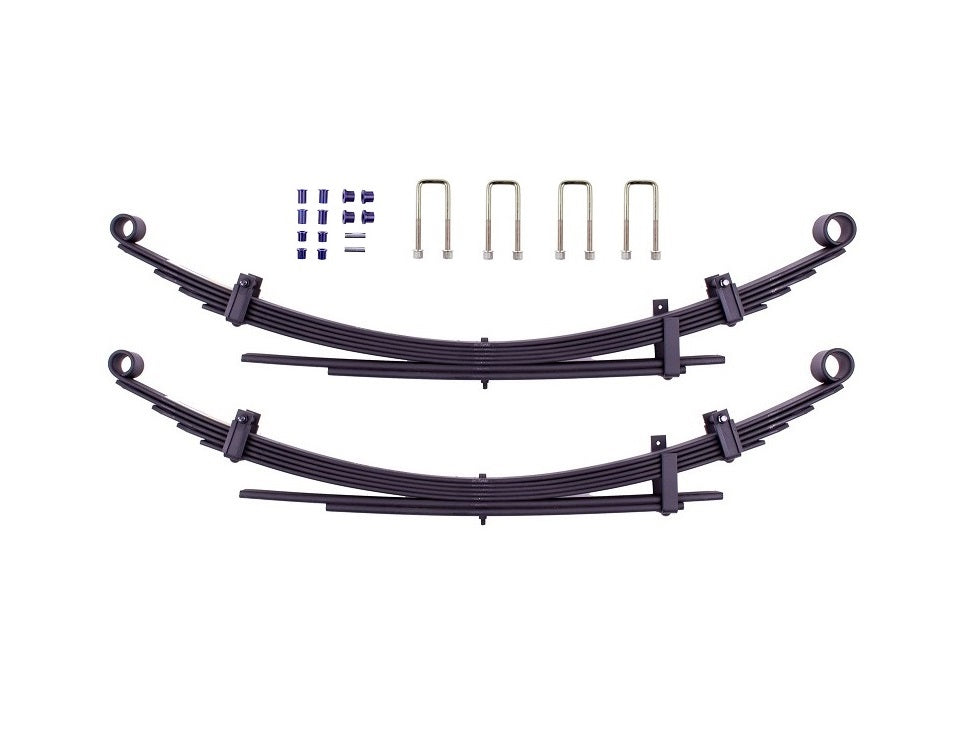

Toyota Hilux (2005-2015) KUN26R (Coil/Leaf) 4/05-15 1 x Pair Rear Leaf Springs Tough Dog Leaf Springs (Pair)
Includes the following U-Bolt and Bush Kit to suit Toyota Hilux KUN26R (Coil/Leaf) 4/05-15
| TDUK-067 - Tough Dog Bush Kit |
| UB453/2B x4 - U-Bolt |
Approximate raised height 50mm
If you're unsure of the Front and Rear Setup selection process please refer to our FAQ Page for assistance.
If you are then still unsure please feel free to contact us.
Important Note: Must be fitted with long travel shock absorbers
Designed in Australia, Tough Dog leaf springs offer a spring pack for just about any application you might require. Tough Dog springs are a proven performer in any situation.
Tough Dog leaf springs are a truly progressive rate leaf spring. Each leaf is set slightly higher than the leaf above so there is contact along the whole length of each leaf. There are single stage and two stage springs available for different applications. Primary and secondary stage leaves ensure that the vehicle's ride remains uncompromised. As the spring is compressed under load, the heavier second stage leaves come into play to prevent excessive sag & remove high stresses from the primary stage.
- Precision mandrel & die-formed
- Oil quenched, hardened & tempered for maximum life
- Military wrap for safety, Accurately heat-treated
- Manufactured from high grade spring steel
- Anti-friction pads in most applications
- Pre-stressed to maintain ride height
- Diamond cut ends
- Load rate tested
*Representative Image Contents May Vary
Compatible Vehicles
The below list shows all vehicles this part is suitable for
| Make | Model | Series |
|---|---|---|
| TOYOTA | HILUX | KUN26R (COIL/LEAF) 4/05-15 |
