    PRODUCT DESCRIPTION

    Mazda BT-50 (2012–2020) – Bilstein Platinum and RAW rear suspension package

    Upgrade the rear suspension only with a matched pair of CalOffroad Platinum Bilstein shocks and a locally sourced RAW 4x4 rear leaf spring pack. Choose the RAW rear load category suited to the accessories and load normally carried in your vehicle.

    The RAW leaf spring packs are designed for approximately 40–45 mm rear lift; actual height varies with current vehicle weight, existing spring condition and installation. The shock absorber fitment range is not a guarantee of 75 mm rear lift. This package does not include front struts, front coils or upper control arms.

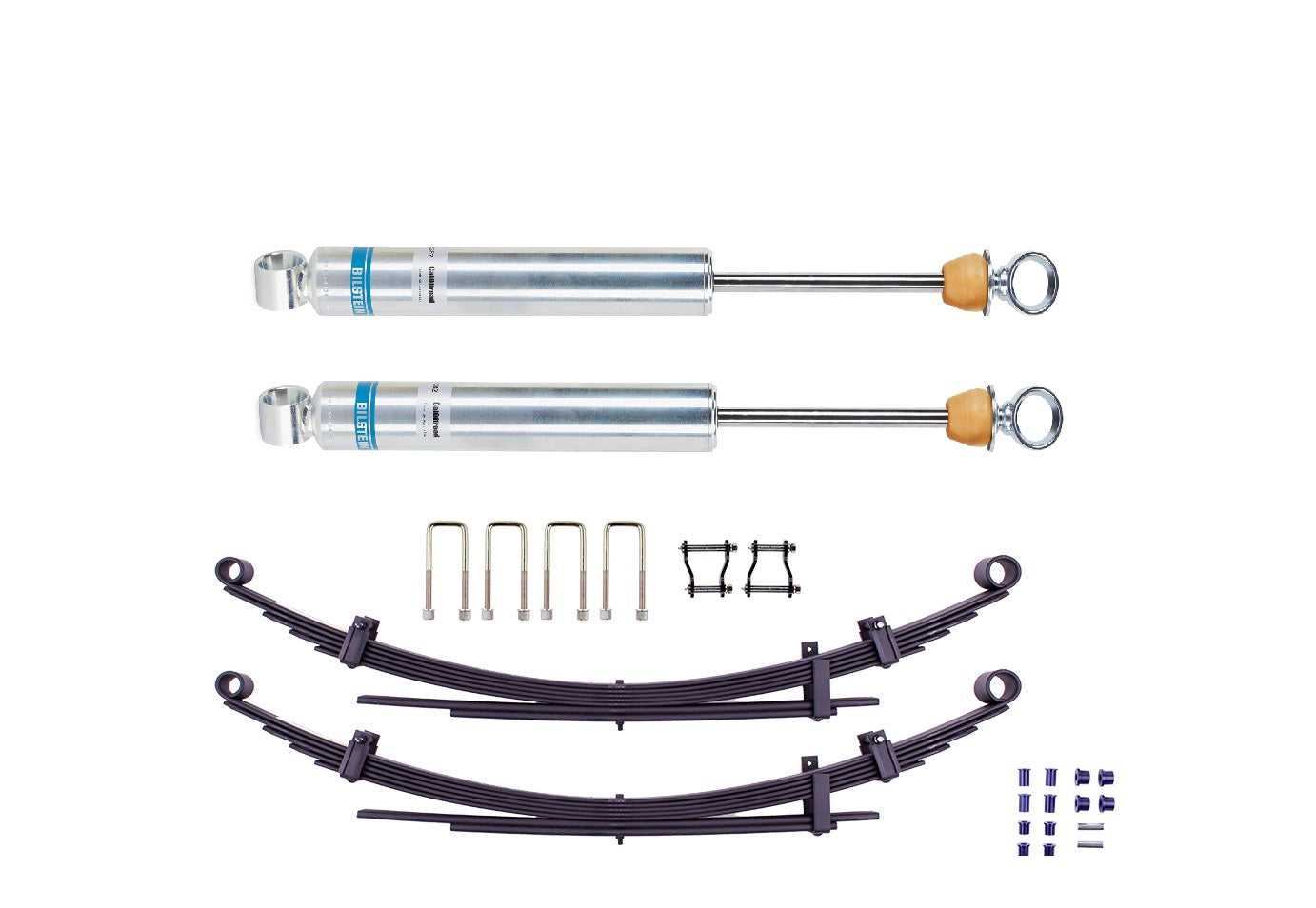

    What is included

    • 2 × CalOffroad Platinum Bilstein rear shocks, part 24-249164
    • 2 × RAW rear leaf springs in your selected load rating
    • Correct greasable shackle/pin/bush fitting kit and any required spring U-bolts for your RAW selection
    • 1 × Tough Dog TD-TDSP-007 tailshaft spacer kit

    Rear leaf load choices and fitting hardware

    RL903 (0–200 kg), RL904 (350 kg constant), or RL905 (550 kg+ constant). Rear fittings: KIT168SK and four U163 U-bolts for RL903/RL904 or U466 for RL905.

    These spring load selections refer to the typical constant weight carried over the rear axle, not a change in legal GVM or payload. For a vehicle with a heavy canopy, drawers, towing setup or permanently carried equipment, select the appropriate option based on its measured load. Suspension installation and any LVV certification requirements in New Zealand should be checked with a qualified installer.

    Supplied by PPD Performance NZ. Contact us regarding stock availability, collection or dispatch to North and South Island destinations. Actual freight is calculated separately at checkout or by quotation.
