    Mazda Bt-50 (2012-2018) 3" suspension lift kit - A1 Bilstein Tour Pack

    Regular price
    $7,040.00
    Sale price
    $7,040.00
    Regular price
    Sold out
    Unit price
    per
    Shipping calculated at checkout.

    PRODUCT DESCRIPTION

    CalOffroad Platinum Bilstein complete suspension kit – Mazda BT-50 2012–2019

    Purpose-built suspension options with Bilstein monotube damping and CalOffroad Platinum front coilovers. Select your front accessory weight and, for complete kits, your regular rear constant load.

    Lift specification: approximately 75 mm front lift with around 40 mm RAW rear lift. Actual height varies with installed accessories, weight, vehicle condition and ride-height adjustment.

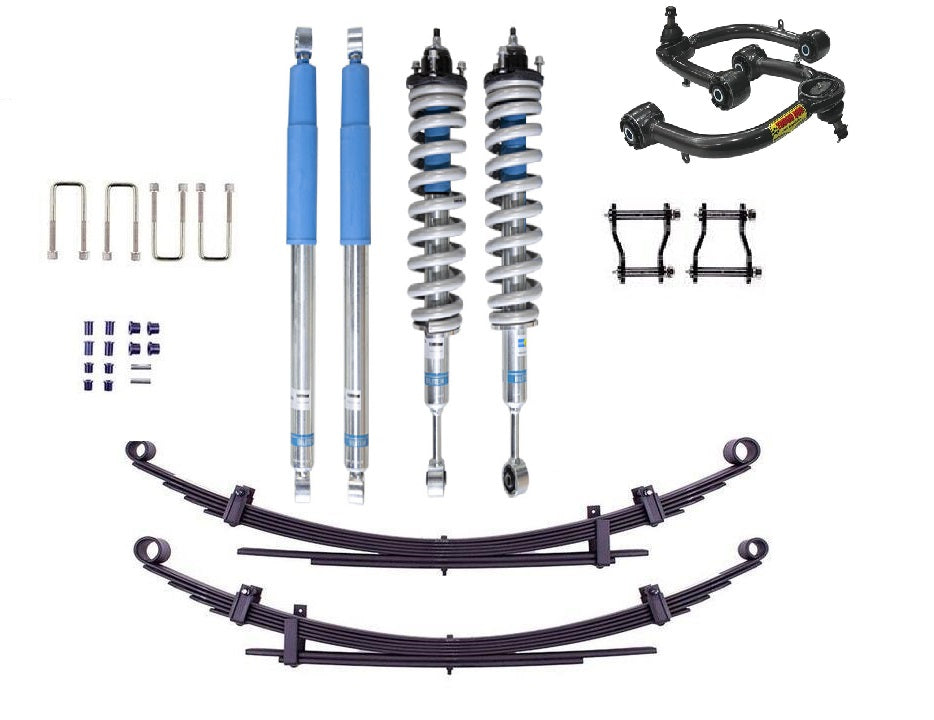

    Included components

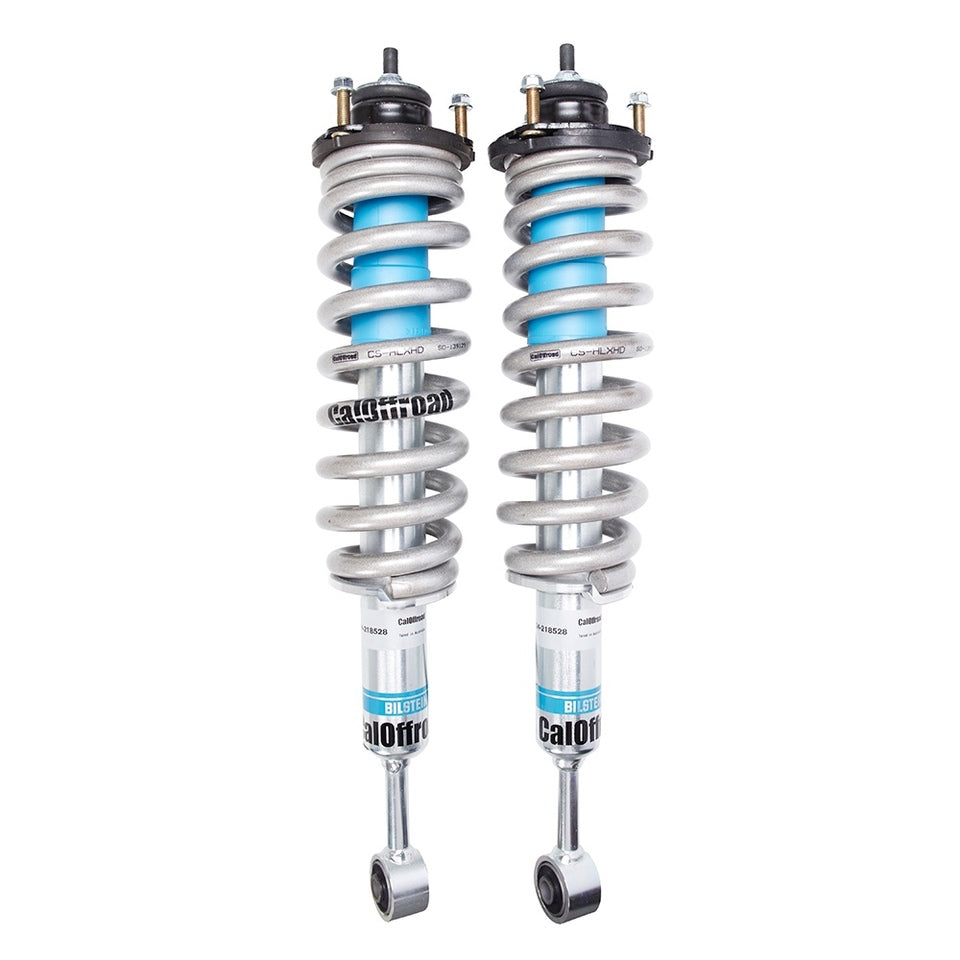

    • Two fully assembled CalOffroad Platinum Bilstein front coilovers, selected by front accessory load and lift setting.

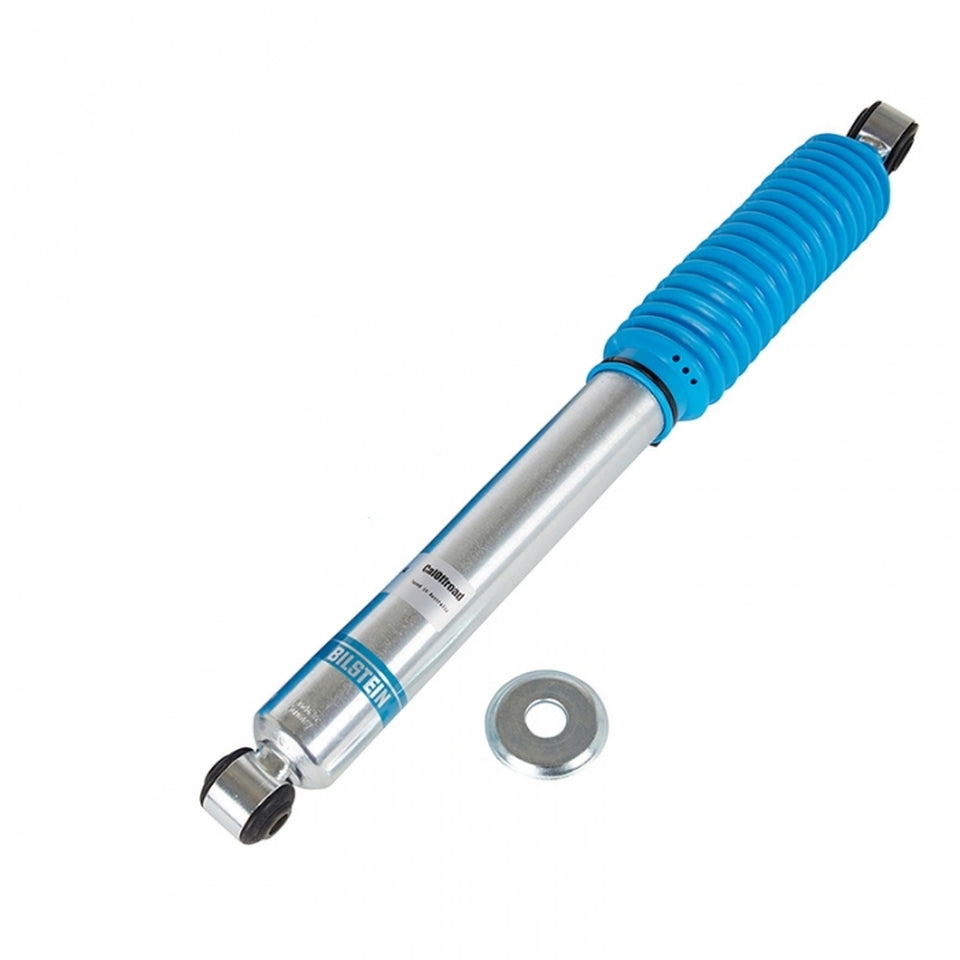

    • Two CalOffroad Platinum Bilstein 24-249164 rear shock absorbers.

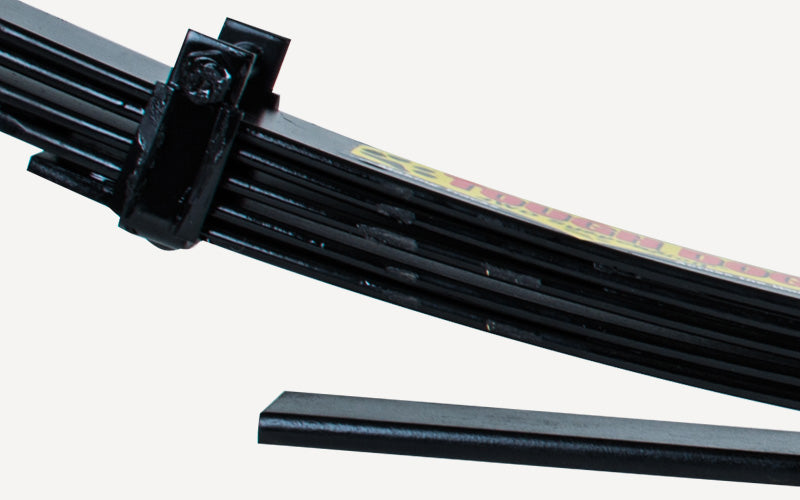

    • Two New Zealand-sourced RAW 4x4 approximately 40 mm raised rear leaf springs: RL903 (0–200 kg), RL904 (350 kg constant) or RL905 (550 kg+ constant).
    • One SuperPro KIT168SK greasable shackle/pin and bush fitting kit.
    • Four new RAW U-bolts: U163 with RL903/RL904, or U466 with RL905.
    • One TD-TDSP-007 centre-bearing/tailshaft spacer kit.

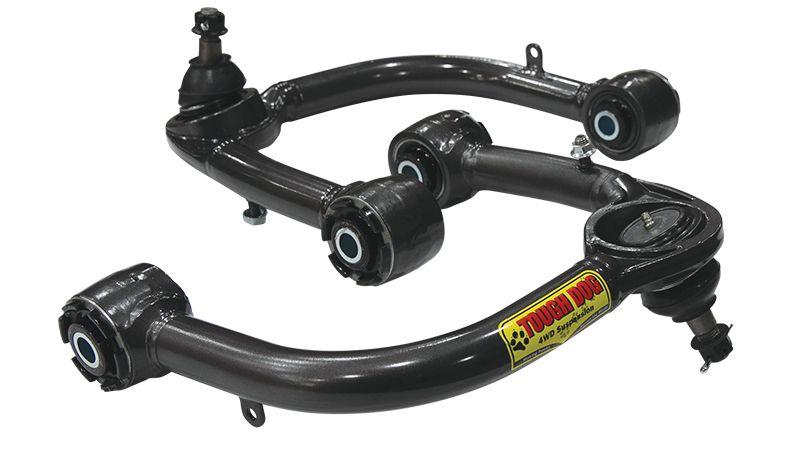

    • One TDCA-003 upper control arm kit and one DDRAN02V2 front differential drop kit for the higher front lift configuration.

    Front coilover choices: LI – no accessories / alloy bar; HE – steel bullbar; EX – steel bullbar and winch. The exact COFRT6T front-assembly part number is shown in each selected variant SKU.

    Important: A 3-inch designation refers to the front height setting; the RAW rear springs are nominally 40 mm raised. Geometry components are included on 3-inch complete kits, not on shock-only packages. A qualified installer must verify lift geometry and LVV certification requirements in New Zealand.

    NZ supply: RAW rear leaves and matching rear fittings are sourced locally in New Zealand for the complete kits. Confirm physical stock and delivery timing before ordering; installation by a qualified 4WD suspension specialist is recommended.
