Isuzu D-Max (2020-2021) Dual Transchill Automatic Transmission Cooler - TCD645DPK

Product SKU: TCD45DPK

The TransChill Transmission cooler kit TCD645DPK (DOUBLE COOLER) is designed for Isuzu D-Max and Mazda BT-50 4JJ3-TCX (2020 – On) models, w/ the aim of reducing transmission heat due to towing, carrying loads & driving in challenging conditions. Its 19mm design maximizes cooling while its compact shape simplifies installation. Pressure tested at 150psi & 33% more efficient than a tube & fin design, the TCD645DPK ensures reliable performance. An auxiliary oil cooler like this one can help protect against costly transmission repairs by cooling the ATF, lubricating & cleaning internal components. Reducing the ATF temp. by as much as 33°C can double the life expectancy of the transmission & internal components. Dual coolers on the TCD645DPK have higher capacity than single coolers.

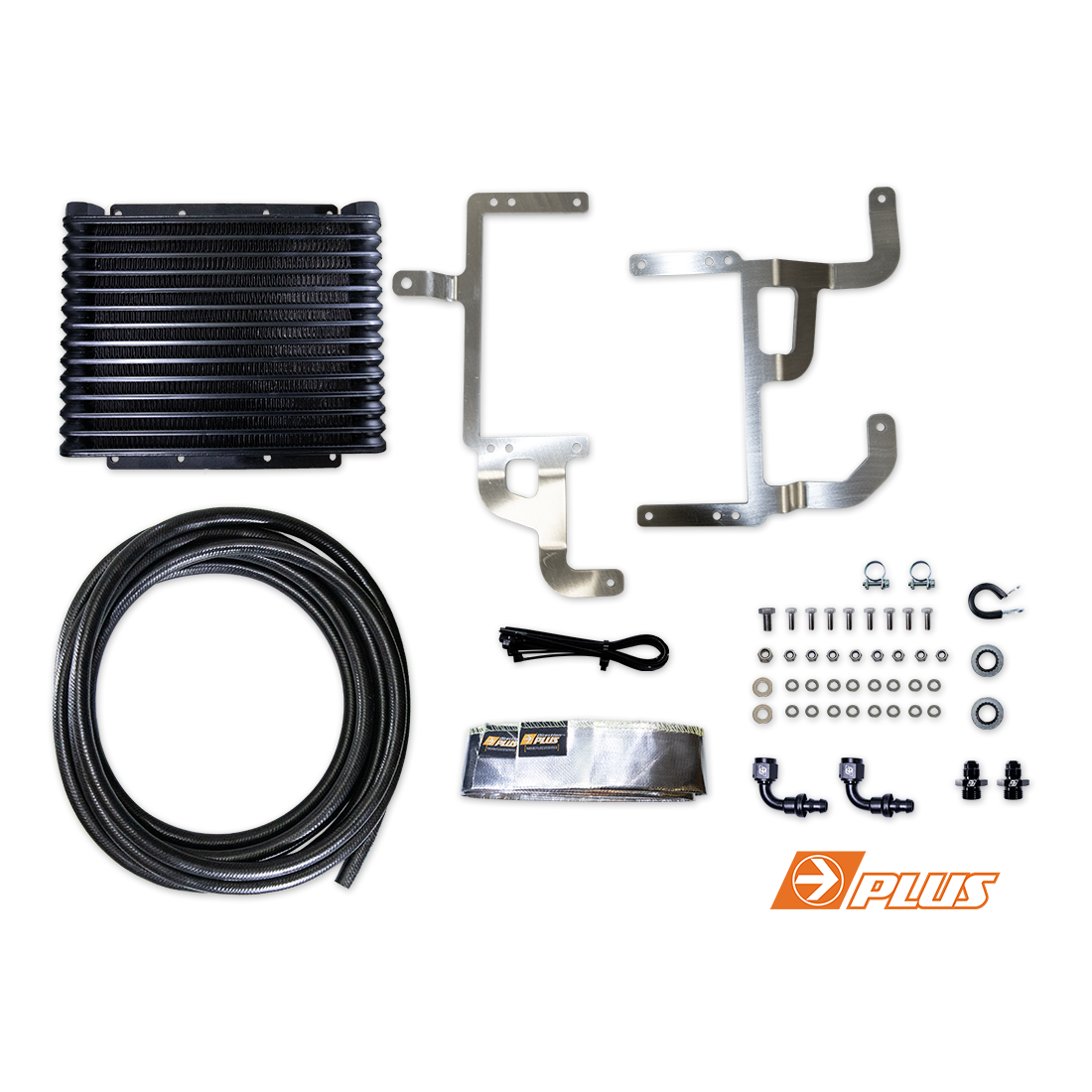

AUTOMATIC TRANSCHILL CONTENTS:

• • Vehicle specific laser cut 4mm 5005-H34 aluminum mounting brackets

  • All mounting hardware included

  • ATF Hose (Meets or exceeds SAE J1019 requirements)

  • 2x Davies Craig 23 row oil cooler (DOUBLE COOLER KIT)

  • 3yr Warranty *Conditions apply

Check fitment guide below to confirm suitability for your vehicle.
