Ford Ranger (2022-2025) Wildtrak OzRoo Tub Rack

  • Sale
  • Regular price $749.00

Ford Ranger (2022-2025) Wildtrak OzRoo Tub Rack available on AfterPay. We deliver Australia-wide! – Sydney, Brisbane, Melbourne, Adelaide & Perth.




Ford Ranger (2022-2025) Wildtrak OzRoo Tub Rack

OZROO TUB RACK FOR WILDTRAK

DOES NOT SUIT WILDTRAK X OR PLATINUM WITH MOVABLE SHUTTER.

(7/10) PRODUCTION UPDATE: ALL HALF, FULL AND EXTRA HEIGHT TUB RACKS DISPATCH IN THE WEEK STARTING 29/10.

- FULL HEIGHT - DISPATCH IN THE WEEK STARTING 29/10.
- HALF HEIGHT - DISPATCH IN THE WEEK STARTING 29/10.
- NARROW RACK - IN STOCK FOR IMMEDIATE DISPATCH
- EXTRA CAB - EXTRA LONG - IN STOCK FOR IMMEDIATE DISPATCH
- EXTRA HIGH - DISPATCH IN THE WEEK STARTING 29/10.
- HALF CAB - IN STOCK FOR IMMEDIATE DISPATCH
- 3/4 CAB (WILDTRAK/X-TERRAIN) - IN STOCK FOR IMMEDIATE DISPATCH
- 3/4 CAB NEW GENERATION (WILDTRAK/X-TERRAIN) - DISPATCH THE WEEK STARTING 29/10

Please note, we can ship with new generation HALF OR FULL HEIGHT tubracks immediately by request - in stock for immediate dispatch. LINK HERE TO THE TUB RACK


ALL OTHER ITEMS WILL DISPATCH IMMEDIATELY IF ORDERED ALONE.

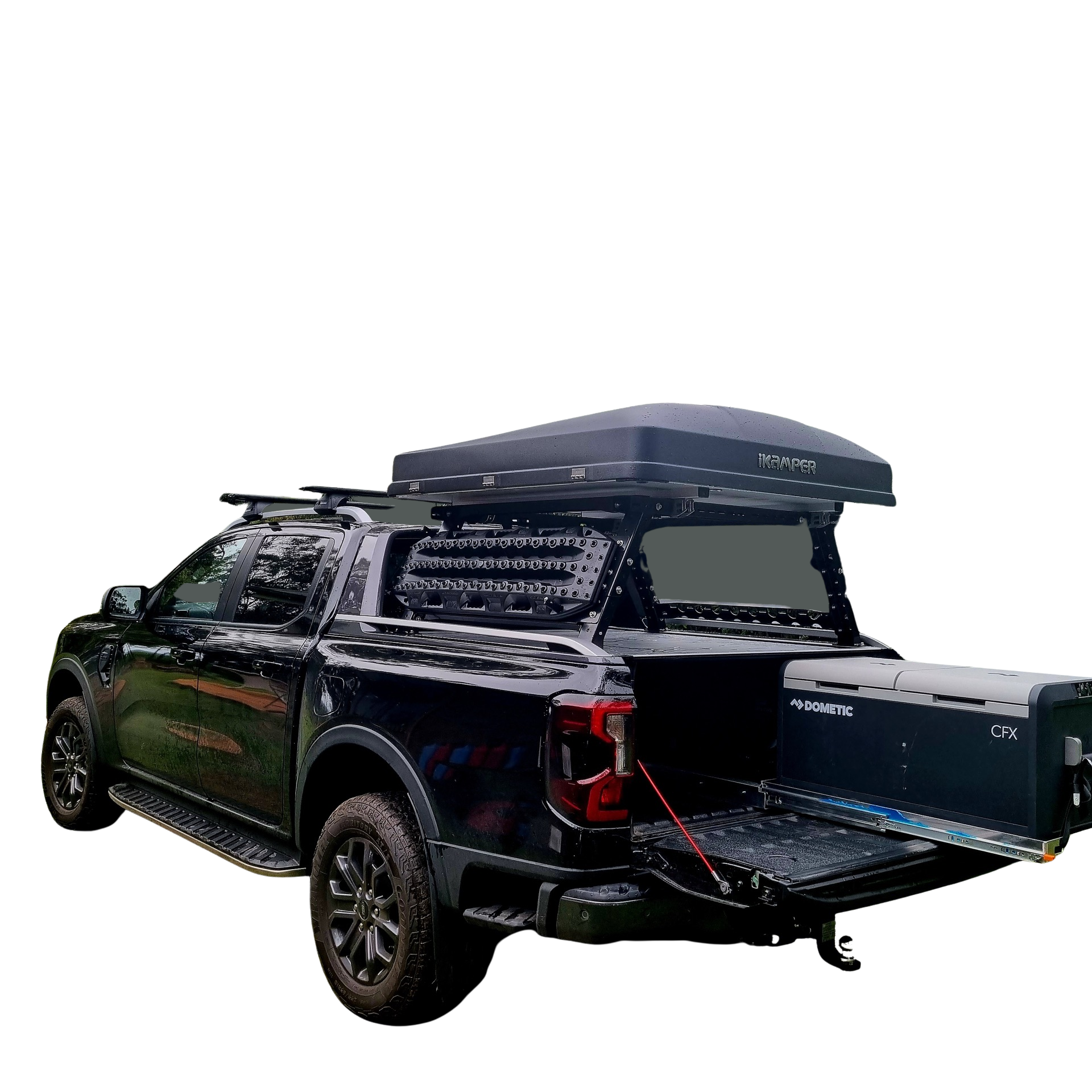

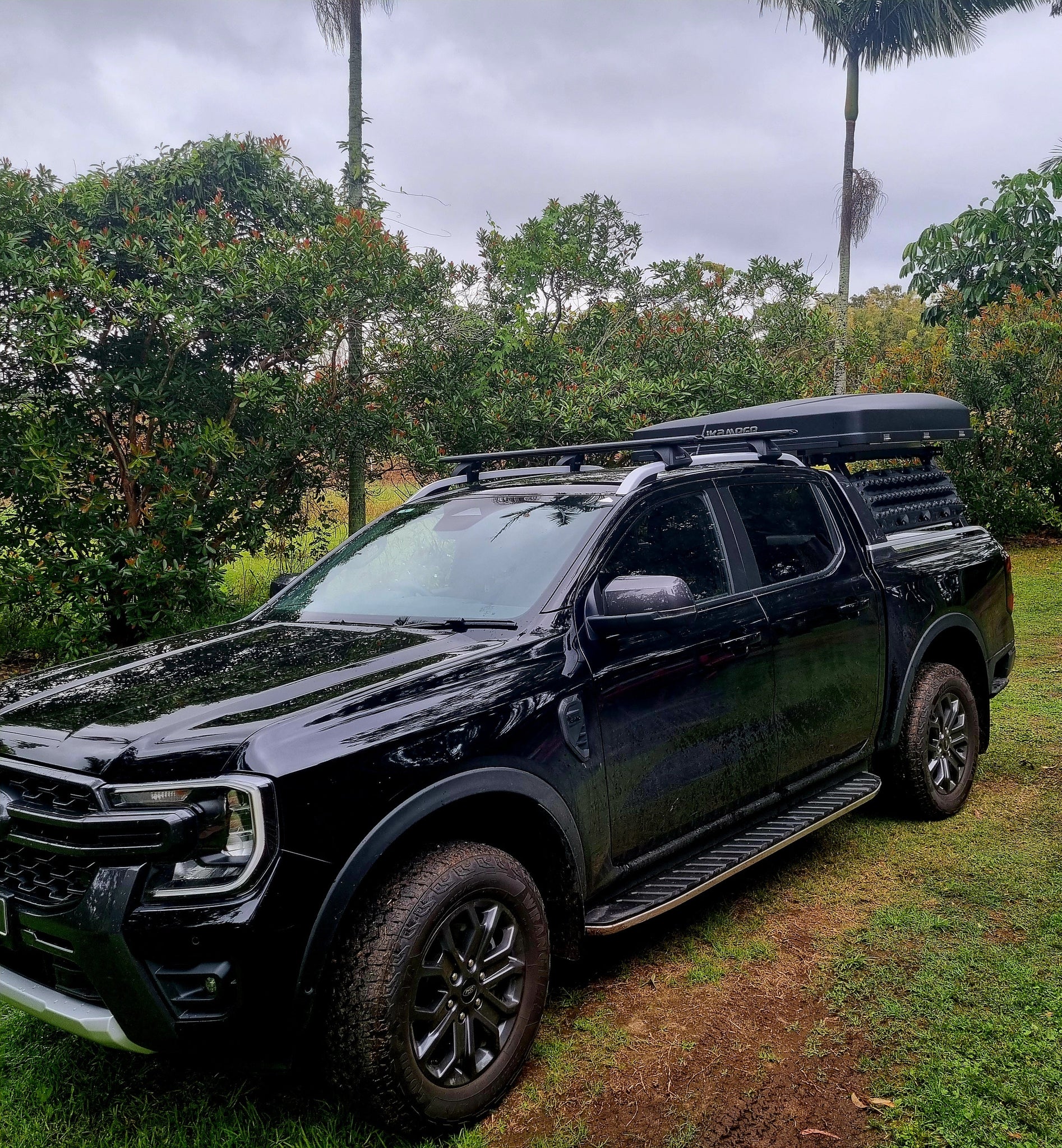

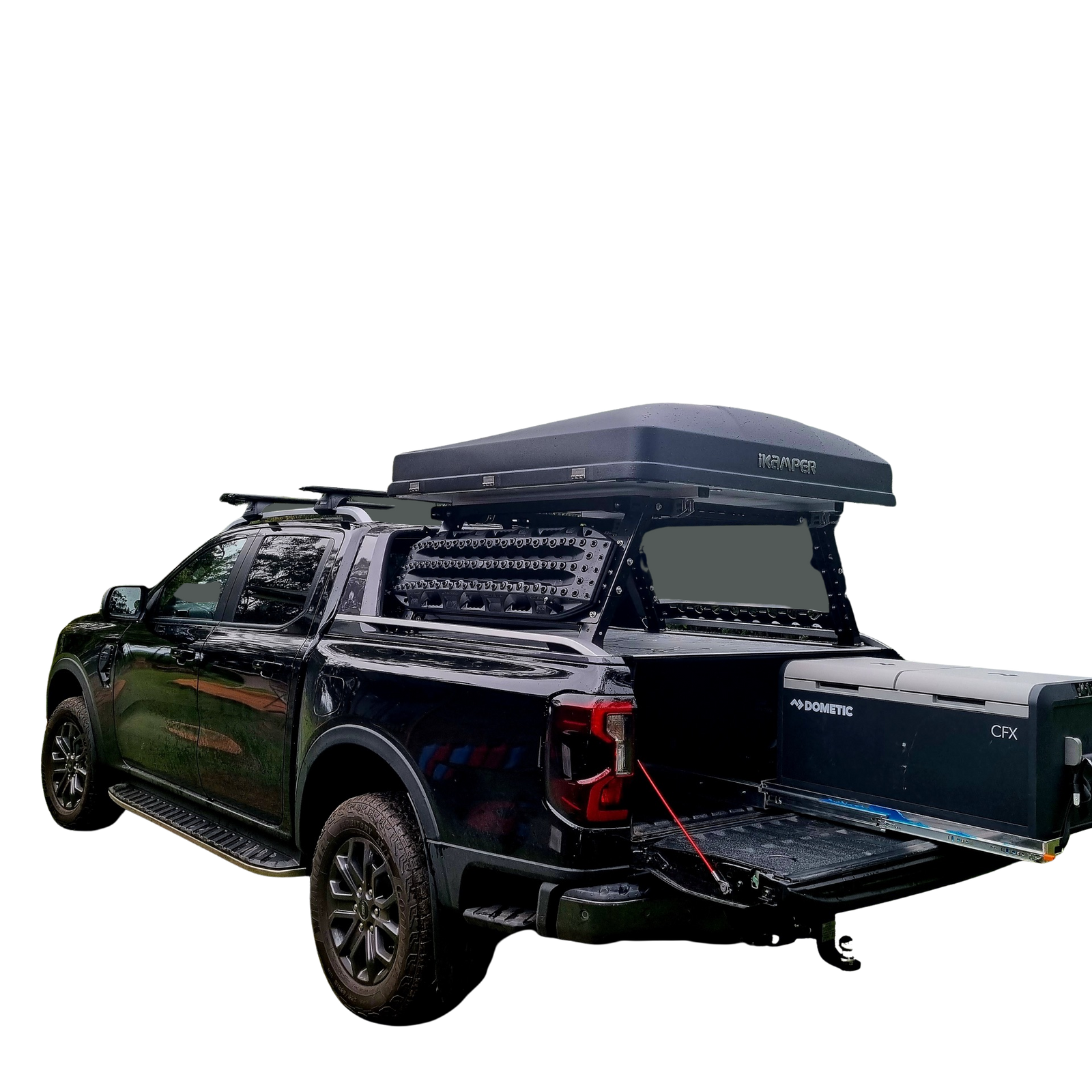

Want more storage and to maintain use of your ute tub? Want to run a roof rack and a tub rack? Need a spot to mount your awning or roof top tent? Have too much gear for the back of the ute? Load up for your next trip or adventure with the OzRoo Tub Rack

PLEASE NOTE: ALL WILDTRAK BRACES CURRENTLY REQUIRE REMOVAL OF FACTORY WILDTRAK TIE DOWN POINTS.

(10/9) PRODUCTION UPDATE: HALF-HEIGHT TUB RACKS DISPATCH IN THE WEEK STARTING 21/10.


- FULL HEIGHT - IN STOCK FOR IMMEDIATE DISPATCH
- HALF HEIGHT - DISPATCH IN THE WEEK STARTING 21/10.
- NARROW RACK - IN STOCK FOR IMMEDIATE DISPATCH
- EXTRA CAB - EXTRA LONG - IN STOCK FOR IMMEDIATE DISPATCH
- EXTRA HIGH - IN STOCK FOR IMMEDIATE DISPATCH
- HALF CAB - IN STOCK FOR IMMEDIATE DISPATCH
- 3/4 CAB (WILDTRAK/X-TERRAIN) - IN STOCK FOR IMMEDIATE DISPATCH

*Note: Photos of full cab length racks coming soon. Currently shown as 3/4 length rack.



The OzRoo Tub Racks are constructed from high tensile, reinforced steel and are finished in multistage powder coat to offer the ultimate in utility, durability, functionality and appearance.


For the Ranger Wildtrak you have two options to suit the factory sailplane;

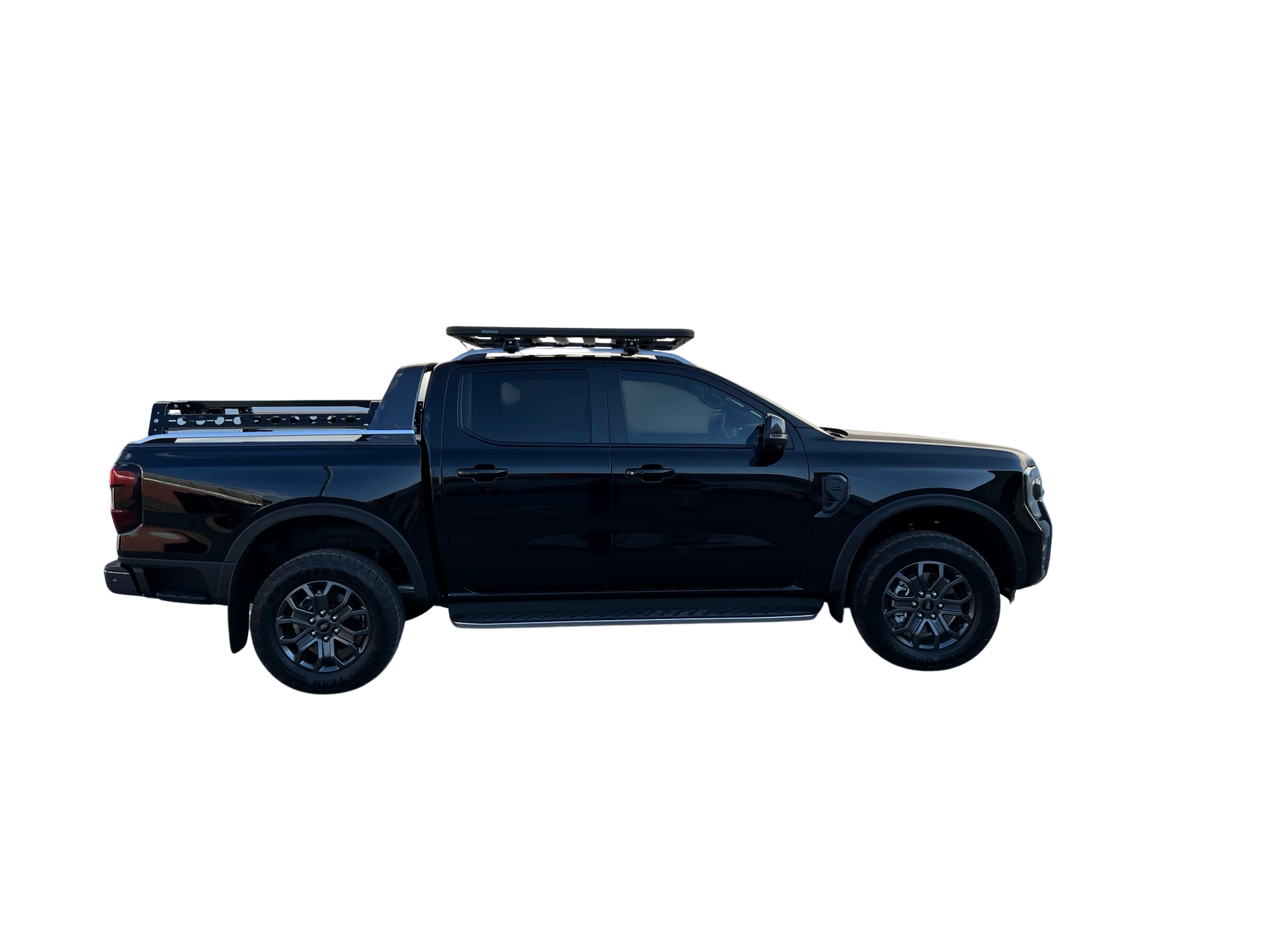

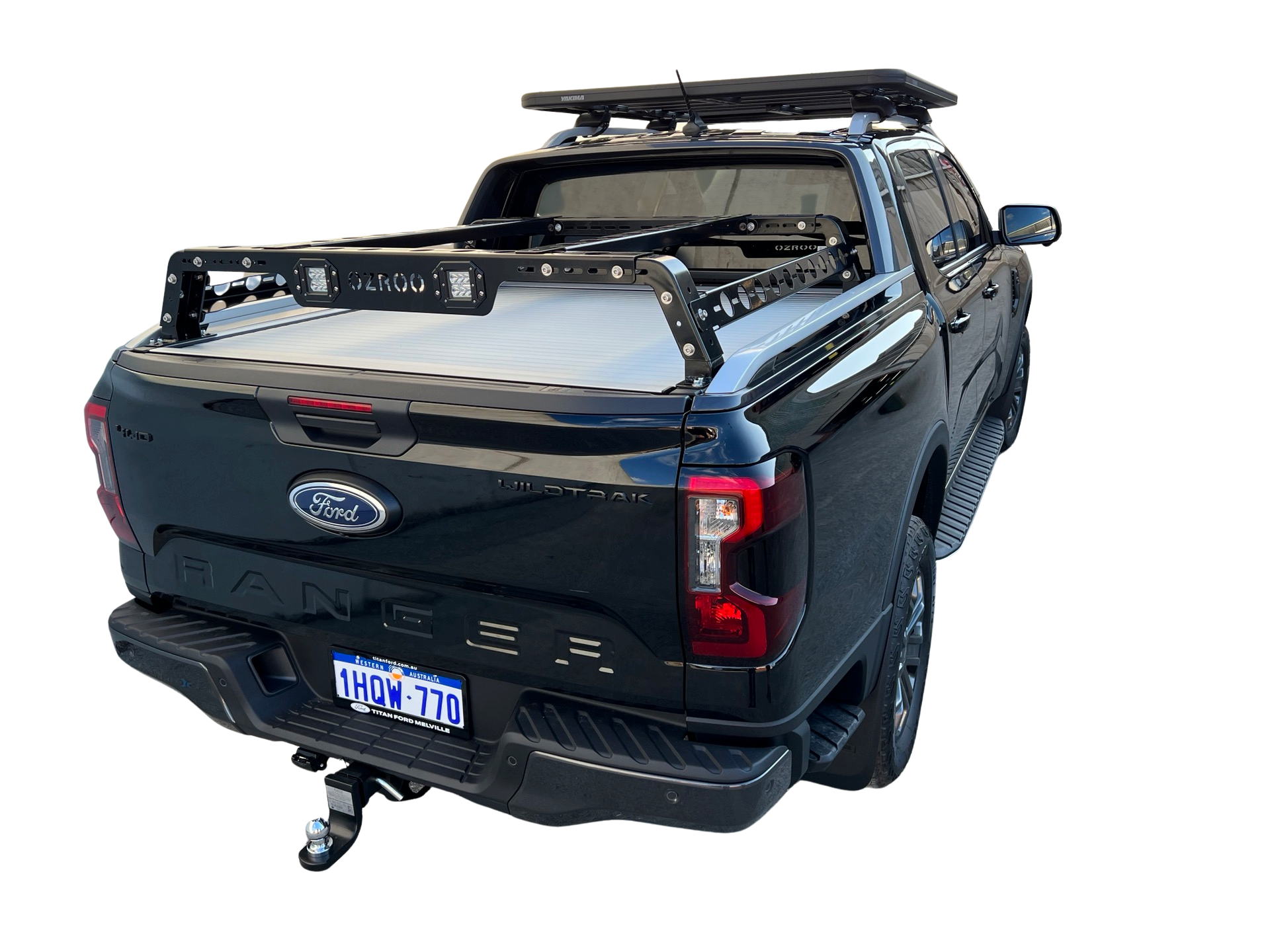

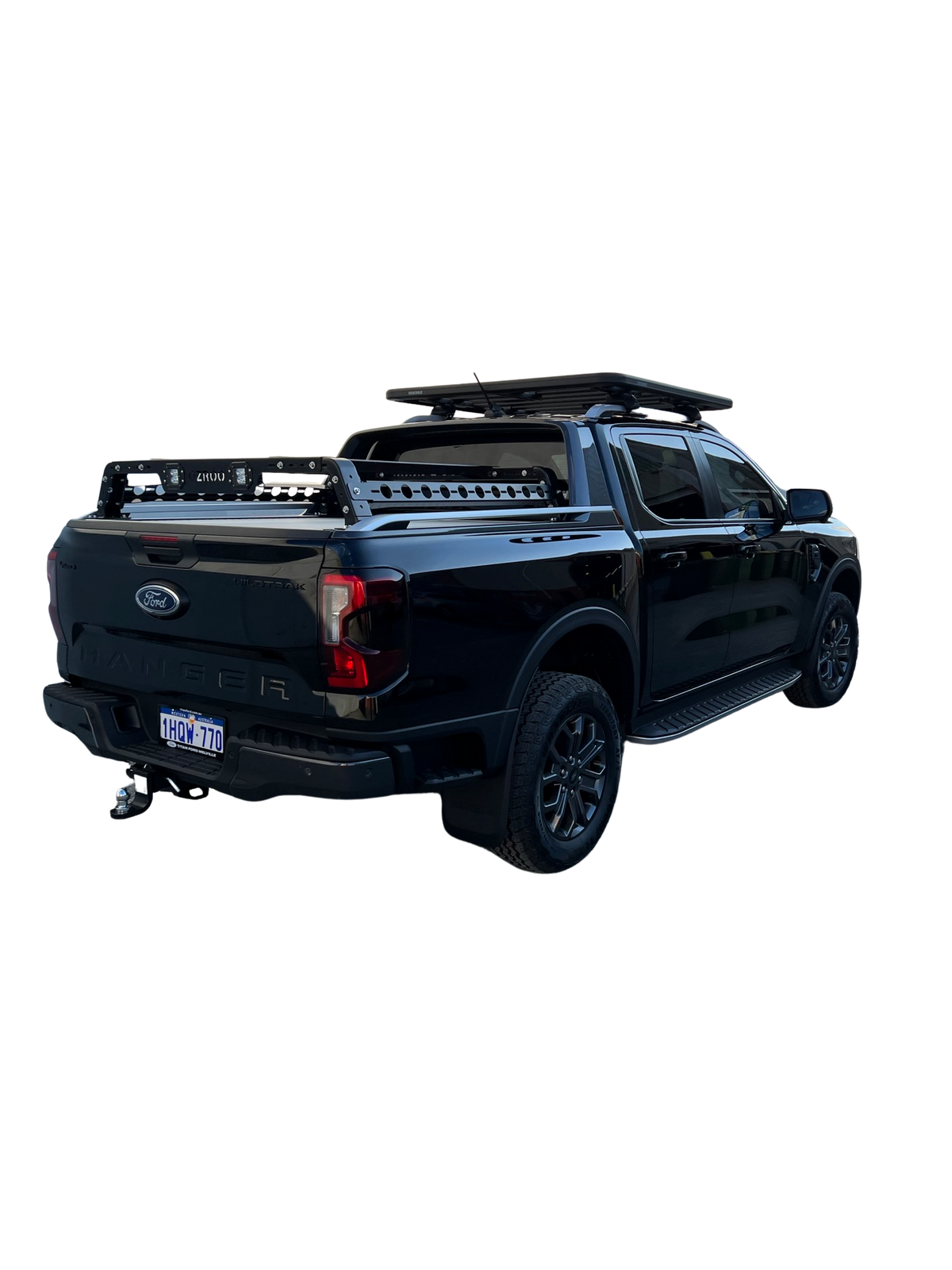

1. Half height, to sit below the sailplane and run the whole length of the cab

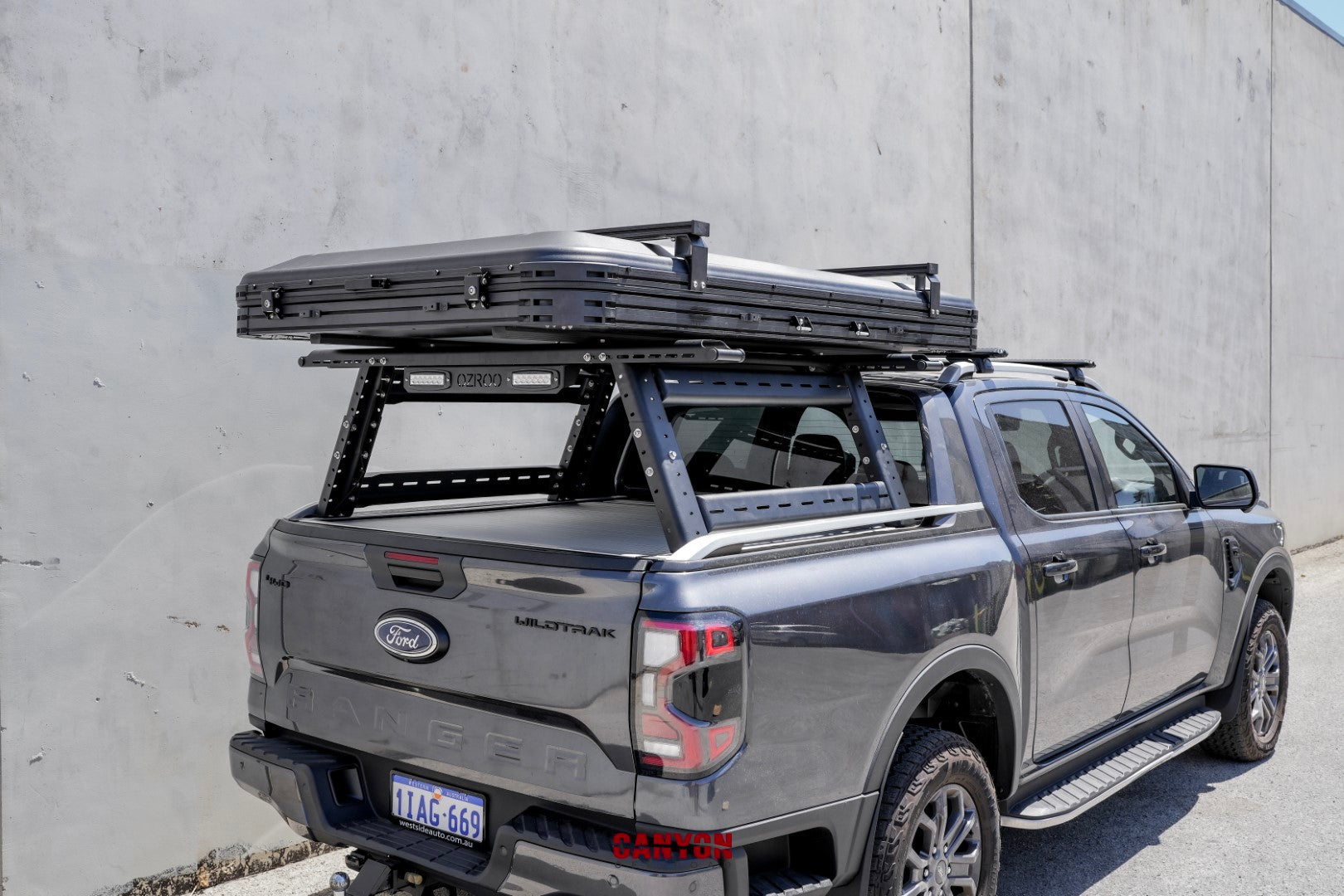

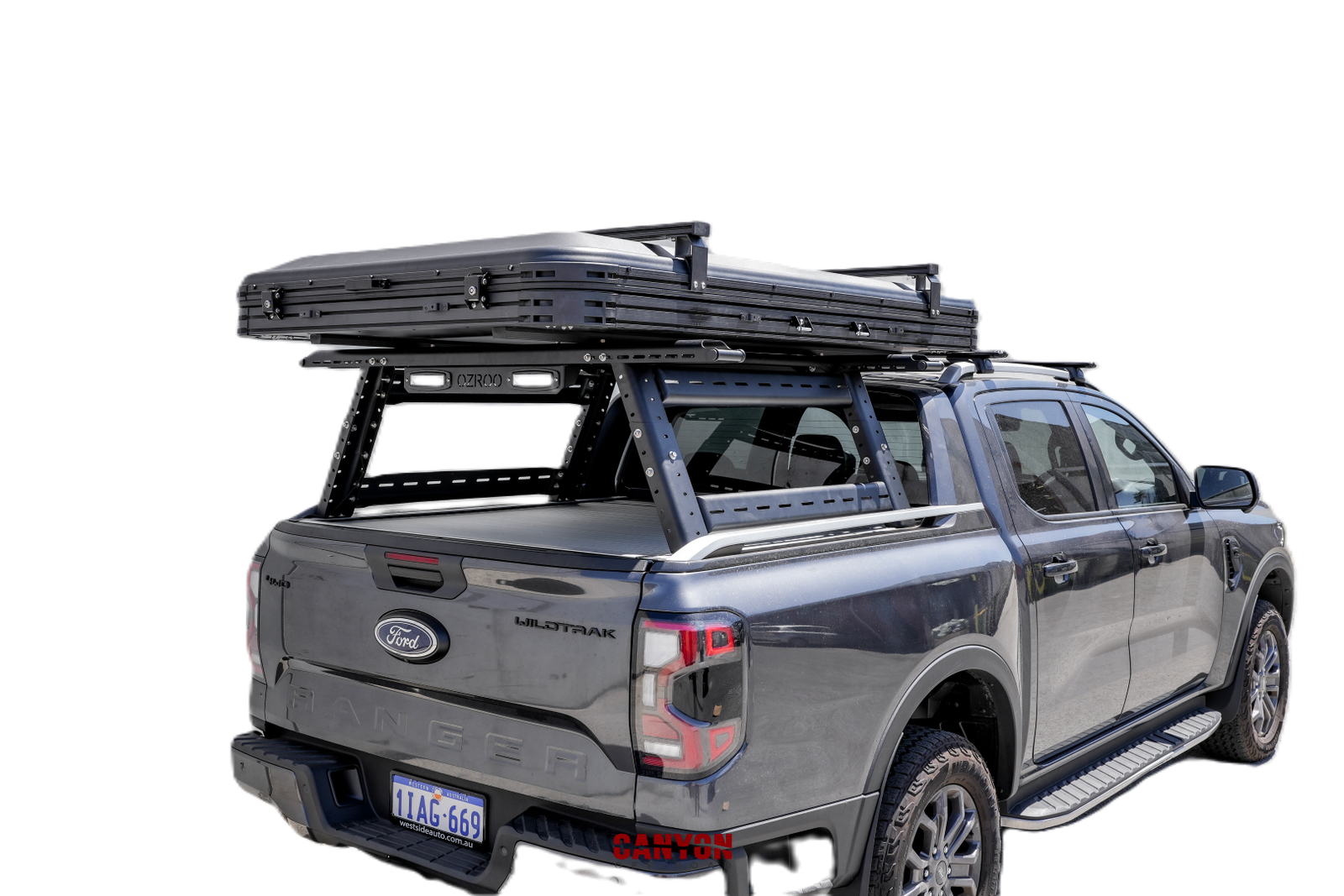

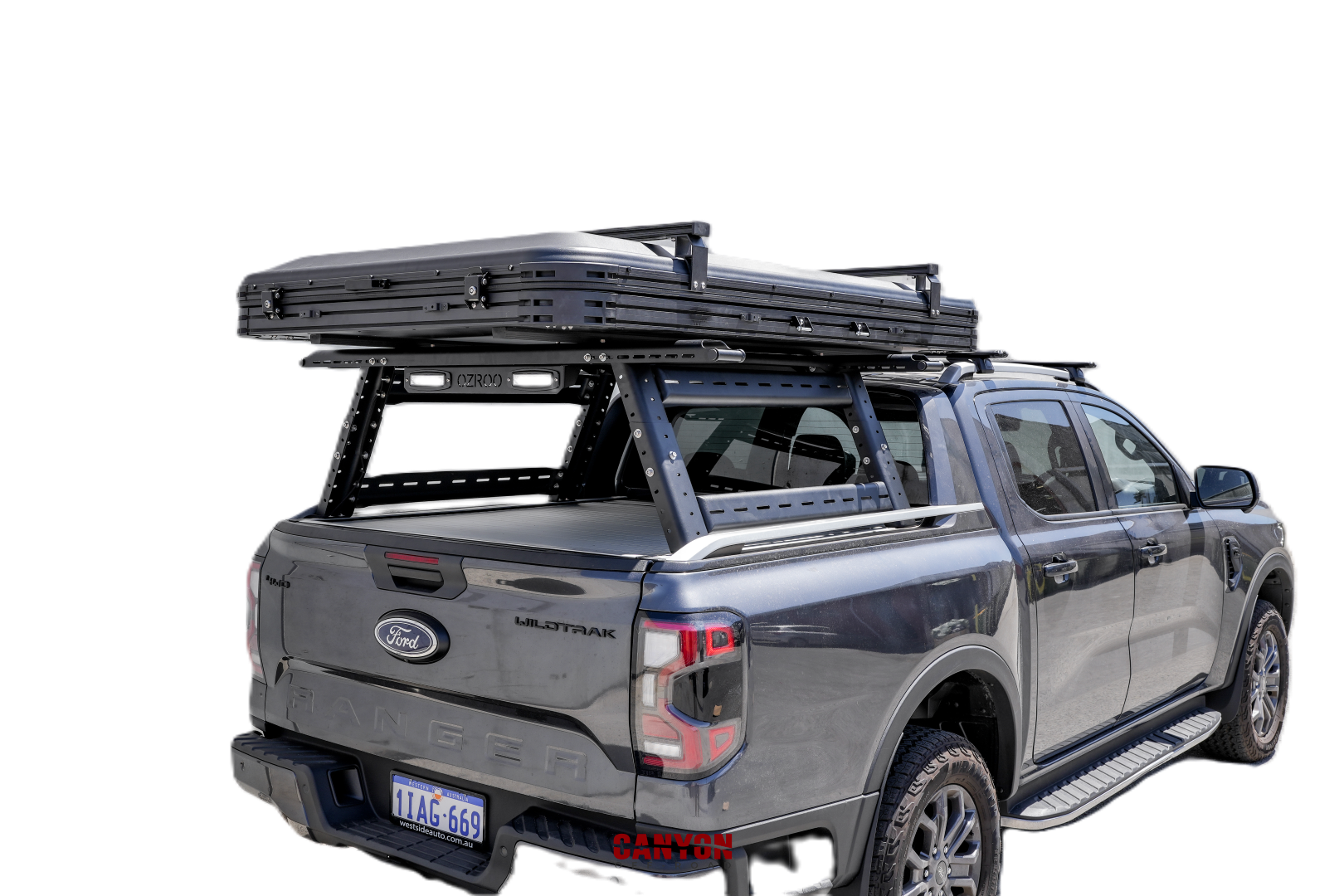

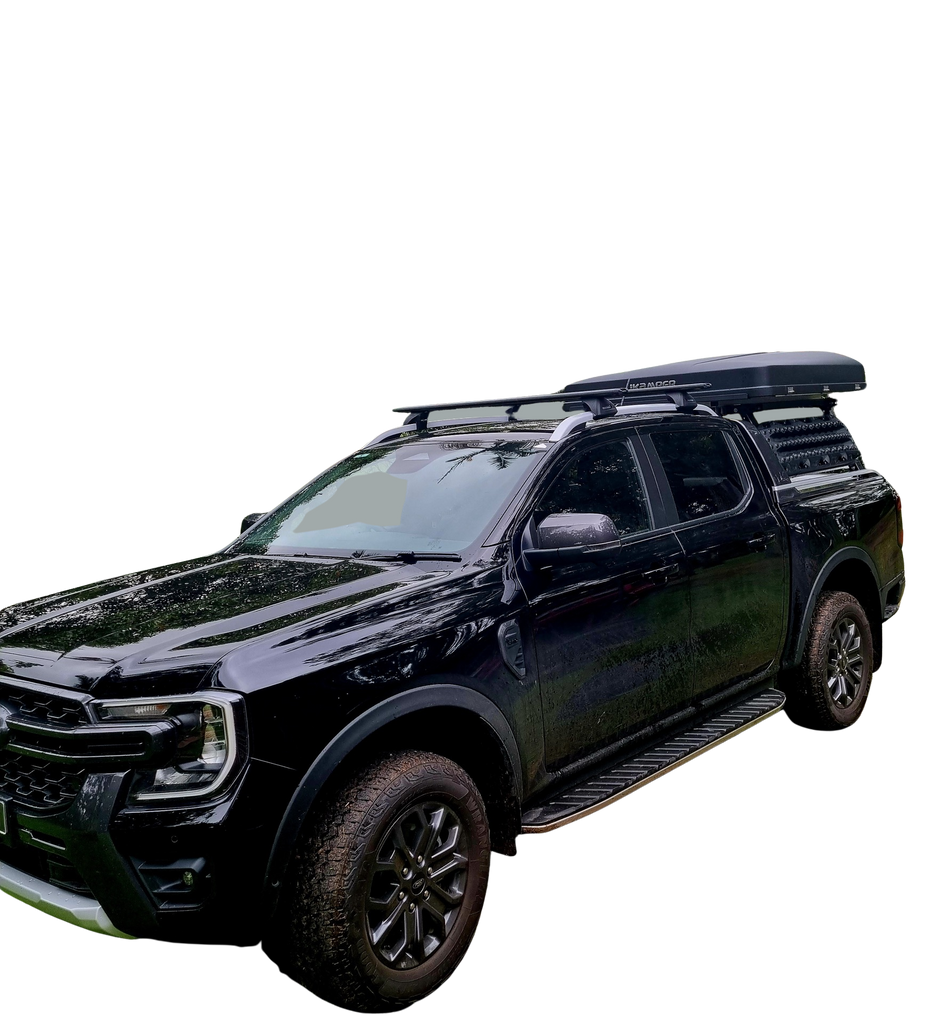

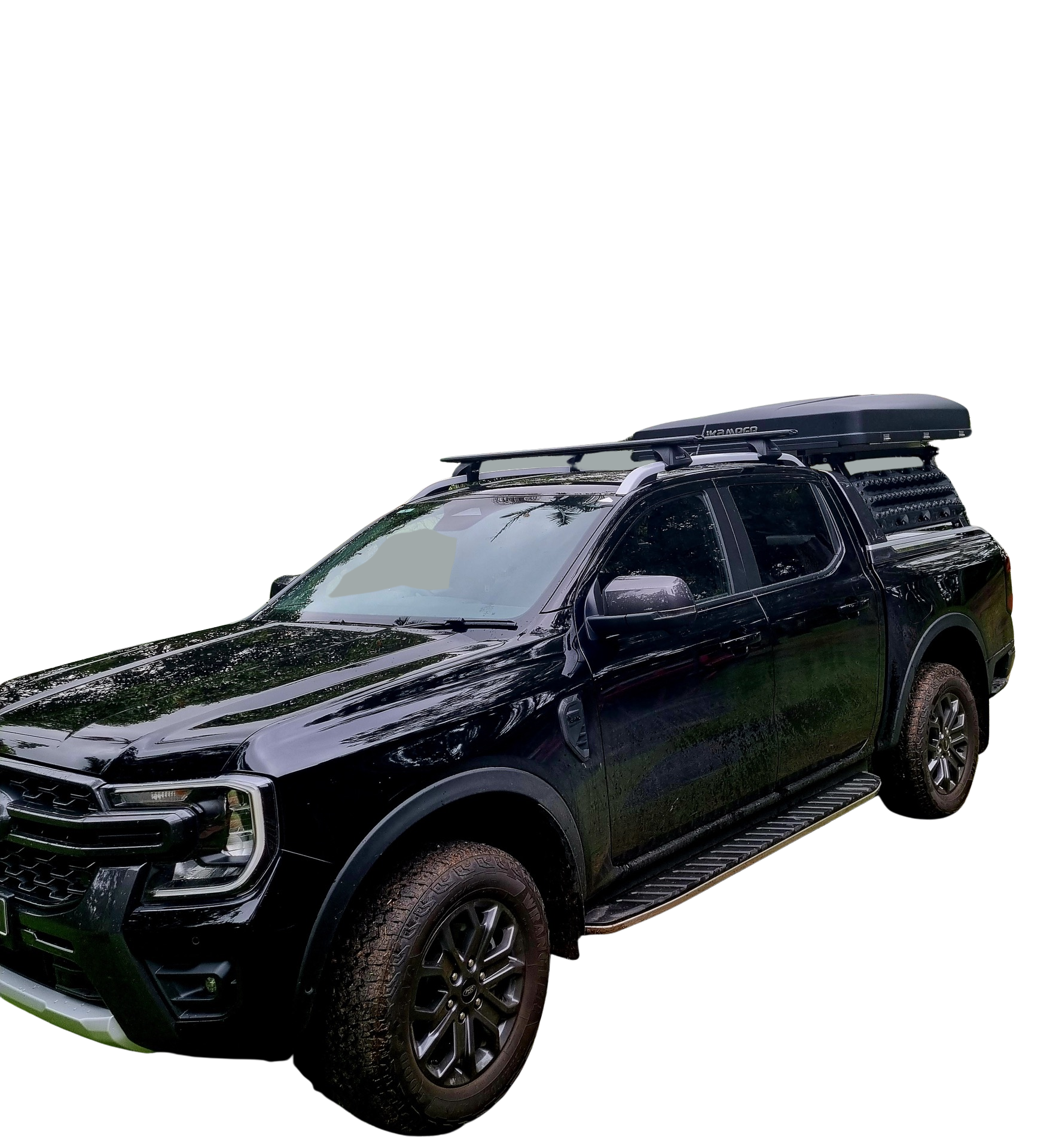

2. Full height, 3/4 cab length (110cm long) to suit sitting the same height as the sailplane but sitting behind it.


MOUNTING THE RACK ON A ROLLER COVER? DON'T FORGET TO PURCHASE THE ADDITIONAL ROLLER-COVER SUPPORTS!


THESE ALLOW ADDITIONAL WEIGHT TO BE LOADED ONTO THE ROLLER COVER:

https://ppdperformance.com.au/products/ozroo-tub-rack-braces-for-ford-ranger-wildtrak

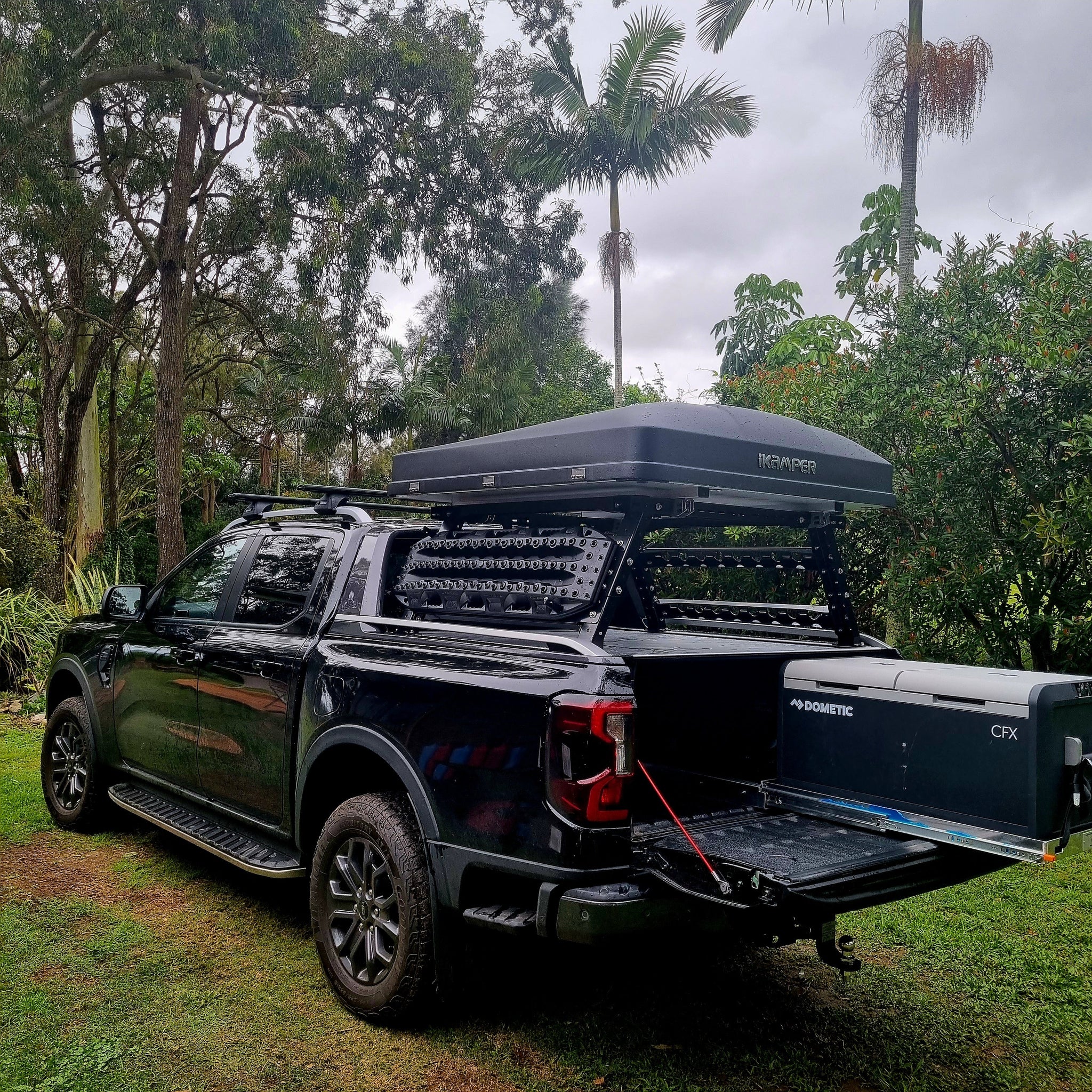

RATED TO 400kgs - PERFECT FOR A ROOF TOP TENT!

Designed specifically for the Australian Ute, they are supplied complete with all fitting accessories, and offer easy direct mount fitment, and these market leading features

  • Easy DIY direct mount install
  • Internal cross member bars for extra support and load carrying capacity
  • Modular height and width to ensure perfect fitment on most Utes
  • Black powder coated for longer durability
  • High quality stainless steel hardware and allen key for easy installation
  • High quality LED lights installed ready for extra reversing or camp lights


These versatile racks, accept most popular accessories, including awnings, hi-lift jacks, spare wheels, jerry cans and more. Uniquely designed for Australian conditions, with class leading strength and protection, all covered by our fuss free two year warranty. Tub Racks are simply one of the best 4x4 accessories available to increase storage and utilisation of Ford Ranger for off-road adventures and touring.


Technical Specifications:

Full height racks:
Length of the racks: 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 590mm above tub
Minimum height 400mm
Includes two side bars.

Half height racks:
Length of the rack - 126cm
Width of the rack - 145cm-180cm
50mm
distance between adjustment holes.
3 holes of adjustment on the lower arm
3 holes of adjustment on the upper arm.
Maximum height 350mm above tub
Minimum height 200mm
Includes one side bar.

Narrow style rack
Length of the rack - 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Extra long length racks
Length of the rack - 150cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

3/4 cab length racks
Length of the rack - 110cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Half cab length racks
Length of the rack - 95cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Extra high racks:
Length of the racks: 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
8 holes of adjustment on the lower arm
8 holes of adjustment on the upper arm.
Maximum height 790mm above tub
Minimum height 600mm
Includes two side bars.

OzRoo, For Australian Conditions - Proudly distributed by PPD Performance
*Please note the weight rating is contingent on correct installation at a non-maximum height. The weight rating is slightly degraded at maximum height.
* Please note, the factory mountain top cover may need extra support if you intend to run full weight ontop of this. Please contact mountain top for the rating of their cover.

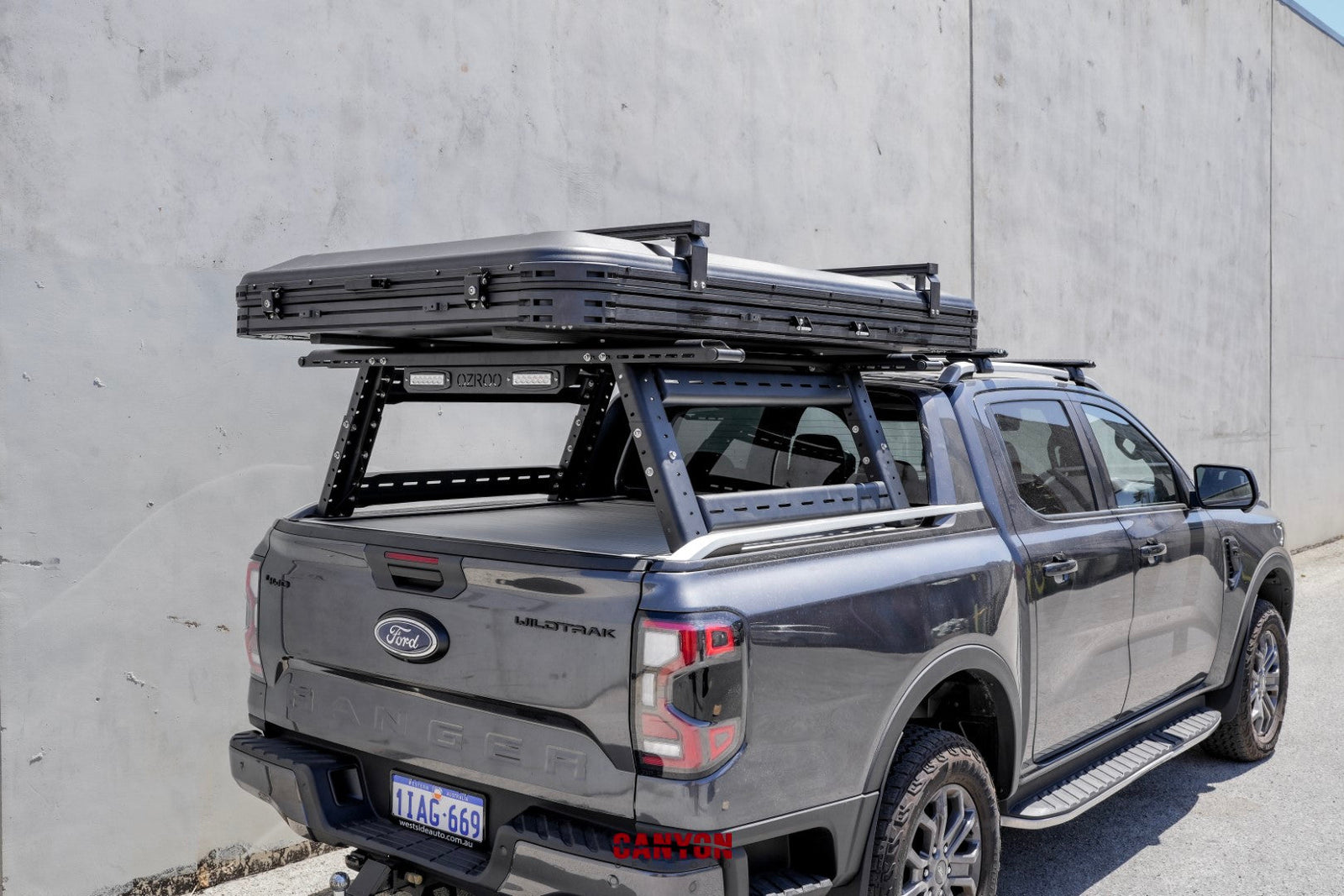

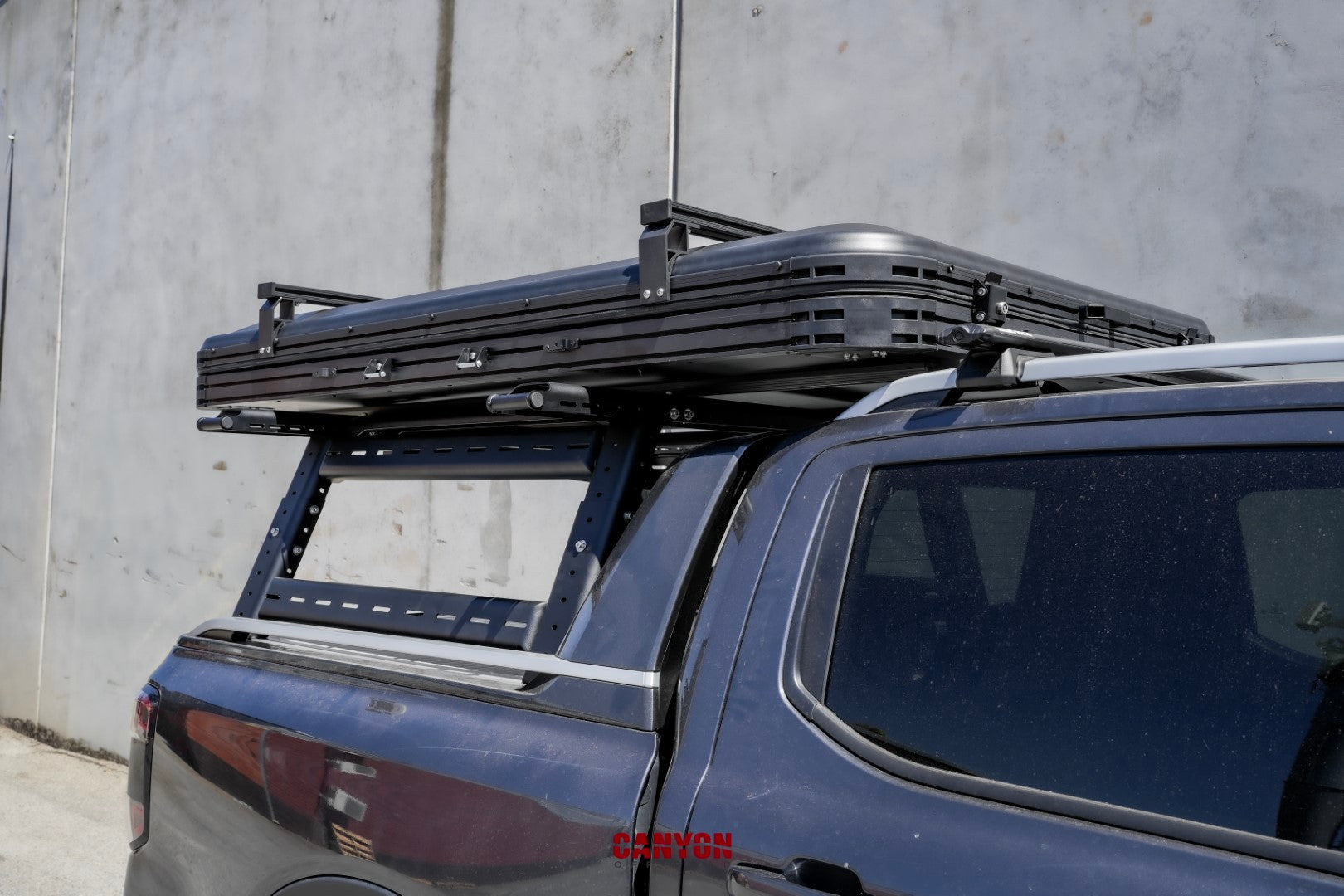

New Generation Rack (3/4 Length)

Wildtrak Ready!

The new generation rack is here, and tested on the wildtrak to fit perfectly. Grab handles and all!




New Design

Sleek, smooth, clean!

All the learnings from generation 1 tub racks, incorporated for an overall better design!
Including GRAB HANDLES!!


Maintaining all the specifications you loved about the original;

  • Easy DIY direct mount install
  • Internal cross member bars for extra support and load carrying capacity
  • Modular height and width to ensure perfect fitment on most Utes
  • Black powder coated for longer durability
  • High quality stainless steel hardware and allen key for easy installation
  • High quality LED lights installed ready for extra reversing or camp lights

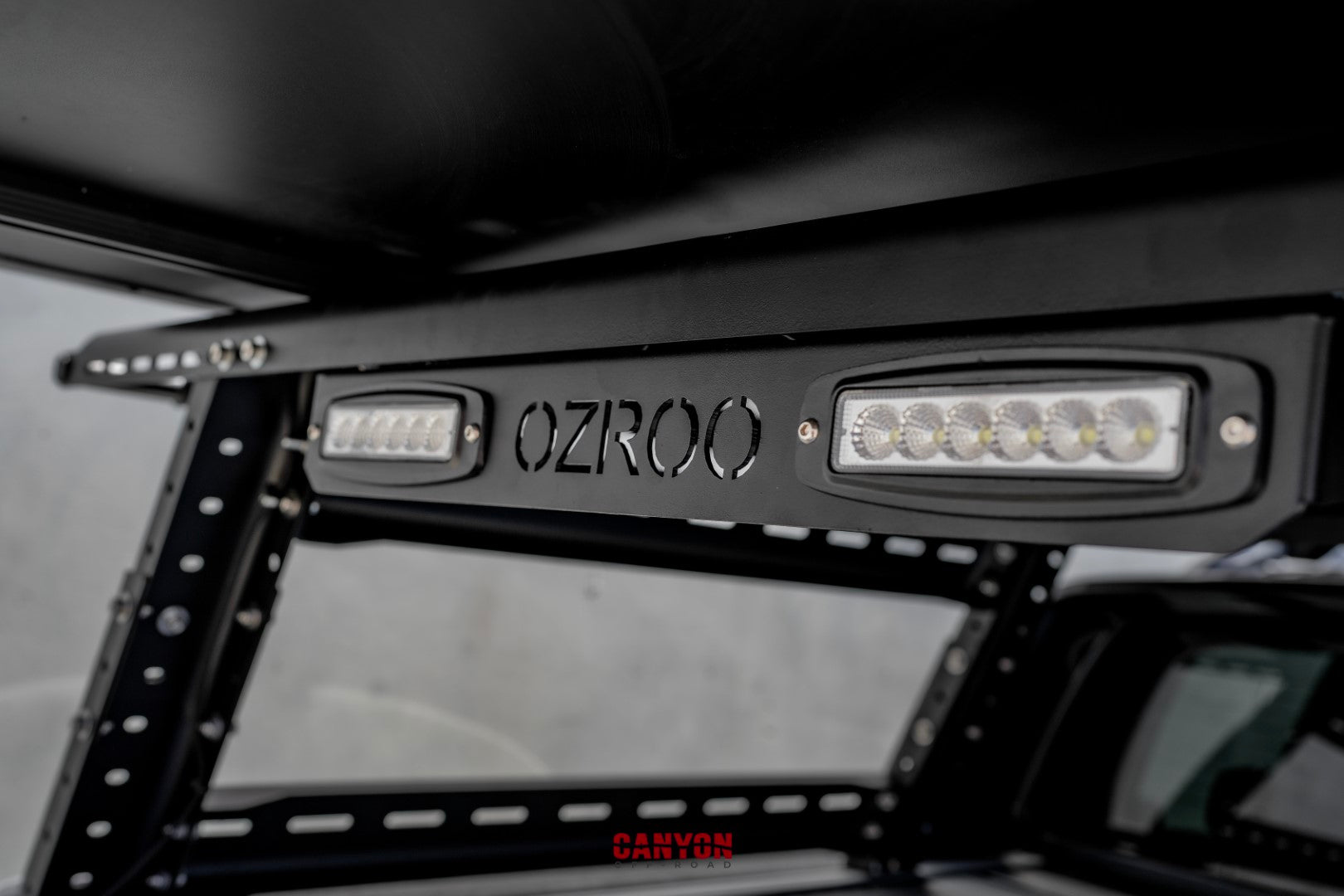

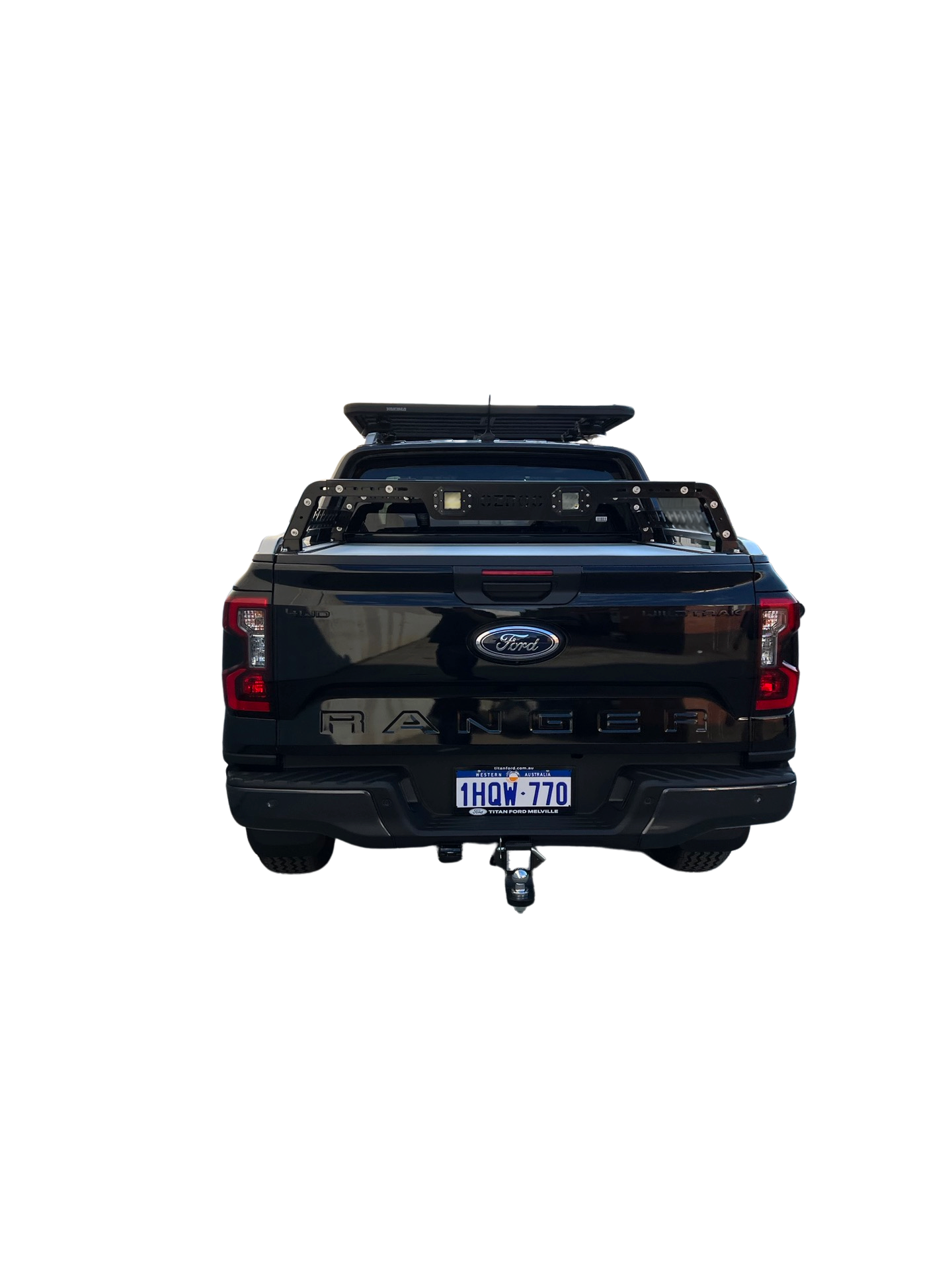

Adjustable Light Mounting Options

Included* Adjustable mounted LED lights

Choose to run lights, or not!
Maintain maximum clearance, or mount the lights on the internal bars for various light angle  options!

Lights available seperately if you would like to run 4x on the one rack it all mounts up!

*Included except for "NO LIGHT OPTIONS"





Flat Mount Or Side Mount, The choice is yours!

You asked, we listened, hidden bolt attachments intenal to the feet! Clean and smooth outside.

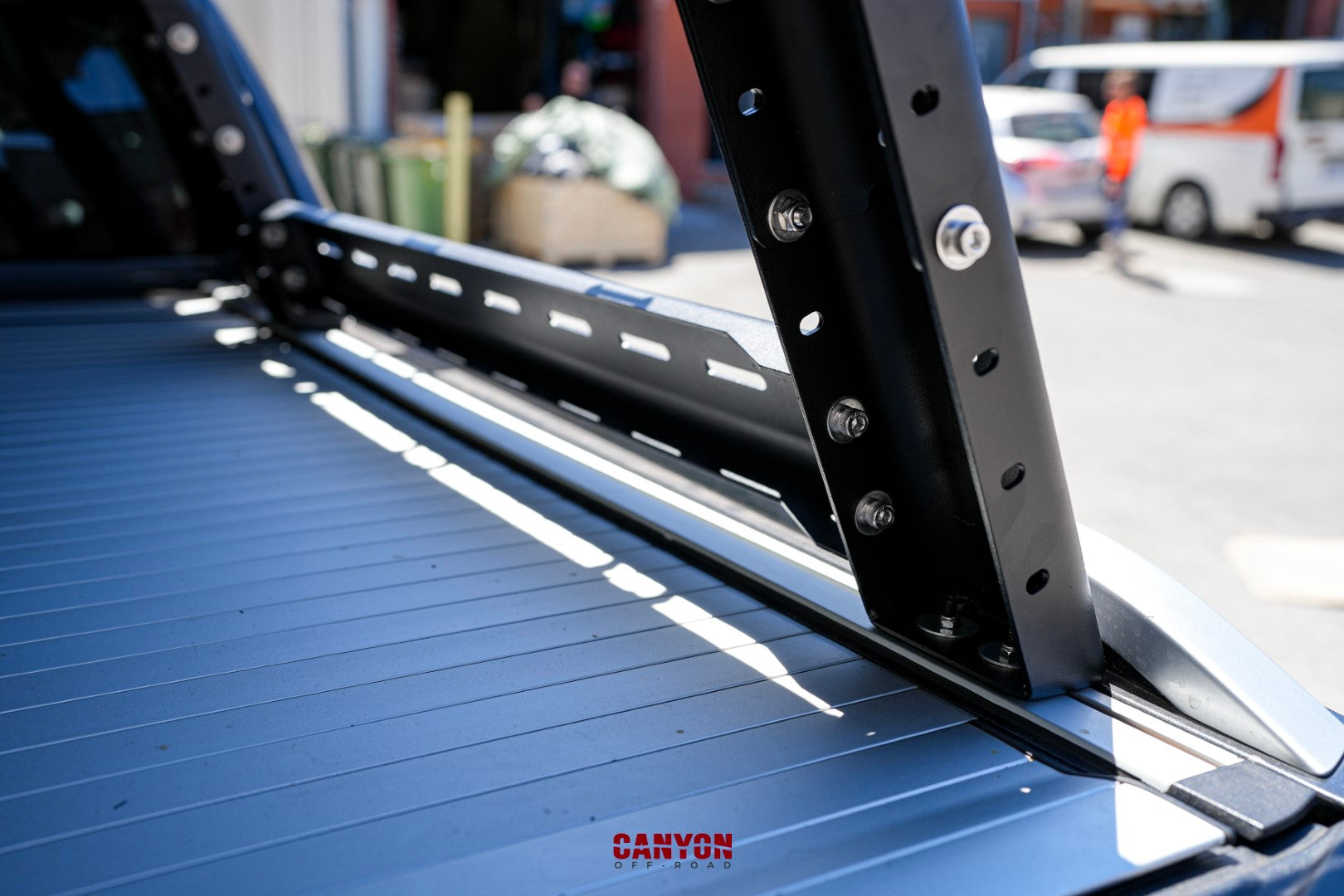

Flat mount option ready to mount for most rollercovers on the market, or flat mount to the side of your tub.

Optional Side of Tub Mount Attachment! Want to internally mount to hide the bolts? No problems, bolt the included attachment in and away you go!


Wildtrak Brace

Ford Ranger (2022-2025) (PAIR) Wildtrak  OzRoo Tub Rack Support Braces New Generation

Want more structural support on the wildtrak sailplane?
Want to run a tub rack?
Load up for your next trip or adventure with the OzRoo Tub Rack

The OzRoo Wildtrak Support Braces are constructed from high tensile, reinforced steel and are finished in multistage powder coat to offer the ultimate in utility, durability, functionality and appearance.

For the Ranger Wildtrak you have a factory limitation of ~100kg* on the sailplane.
These have been prone to bending/deforming overtime in use with racking.
Because of this OzRoo has developed some strengthening braces to help alleviate this.

ENGINEERED TO 150kgs - PER SIDE - PERFECT FOR A ROOF TOP TENT!


Testing completed to AS / NZS 1170.0:2002

Designed specifically for the Wildtrak Ute, they offer easy direct mount fitment, and these market leading features


  • Easy DIY direct mount install
  • Black powder coated for longer durability
  • Includes pair of mounts to support both sides of roller




Uniquely designed for Australian conditions, with class leading strength and protection, all covered by our fuss free two year warranty.

Important notes

J-brace kit is recommended by ford for carrying loads over 45kg on the tub.
The EGR j-brace kit can be found LINKED HERE
