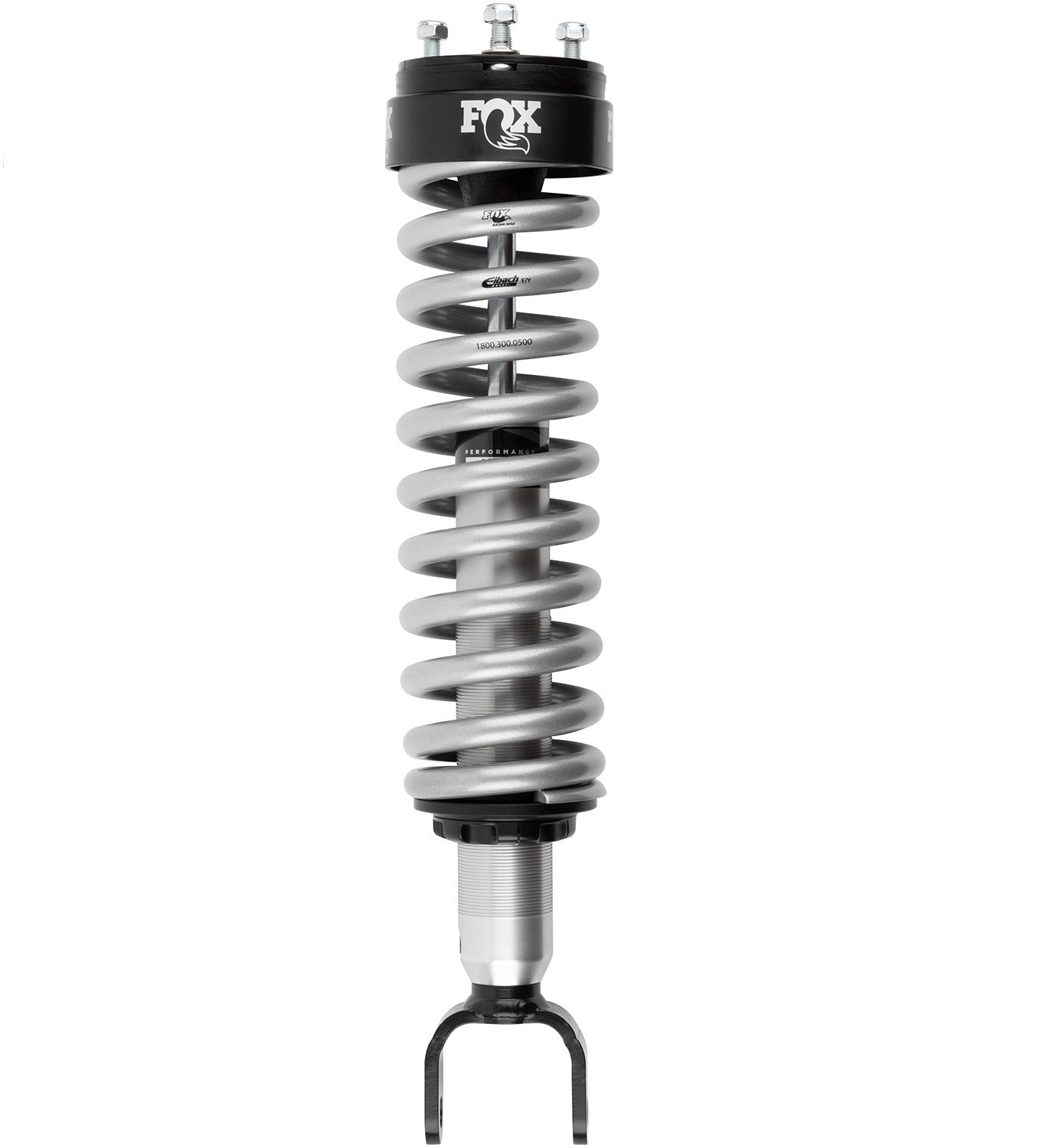

Dodge Ram (2019-2023) 1500 DS Front Coilover Shocks, Fox , 0 - 2 INCH LIFT FOX 2.0
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
| Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
|---|---|
| Body Plating | Clear-anodized for a durable finish |
| Reservoir | Internal IFP mono-tube reservoir design |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 5/8" hard chrome plated heat-treated alloy steel |
| Piston | Race-developed high-flow piston design |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Bearing | Large diameter, heavy-duty spherical |
| Adjustments | Ride height preload ring |
| Extended | 20.460 |
| Compressed | 15.060 |
| Travel | 5.390 |
| Top Mount | OEM |
| Bottom Mount | Clevis |
| Fitment notes | Without Air Ride |
| SKU | 983-02-050 |
| Brand | Fox |
| Product | Coilovers |
| Sold As | Each |
| Front Or Rear | Front |
| Vehicle | Dodge RAM 1500 2009 Without Air Ride RAM 1500 Classic 2019 - 2023 Without Air Ride Dodge RAM 1500 2010 Without Air Ride RAM 1500 2011 - 2018 Without Air Ride Dodge RAM 1500 Standard Cab Pickup 2006 - 2008 Without Air Ride Dodge RAM 1500 Crew Cab Pickup 2006 - 2008 Without Air Ride |
Terms Of Sale
CalOffroad offer custom built suspension solutions, with unique adjustability and performance.
These kits are assembled to order to suit your accessory and weight requirements, with an average lead time that can vary between 1-3 weeks.
If you need a specific eta, please contact us before ordering and we will be sure to assist you.
