    PRODUCT DESCRIPTION

    Toyota Hilux (2005-2015) KUN N70 75mm suspension lift kit - Bilstein B6

    Give your Toyota Hilux N70 KUN26 4WD more confident road manners and suspension control with a Bilstein B6 suspension package from PPD Performance NZ. Bilstein gas-pressure dampers help manage bounce and body movement over uneven roads, gravel, corrugations and off-road tracks. Select the front springs and rear constant-load rating that suit your Hilux and the equipment you regularly carry.

    Bilstein B6 damping and assembled front struts

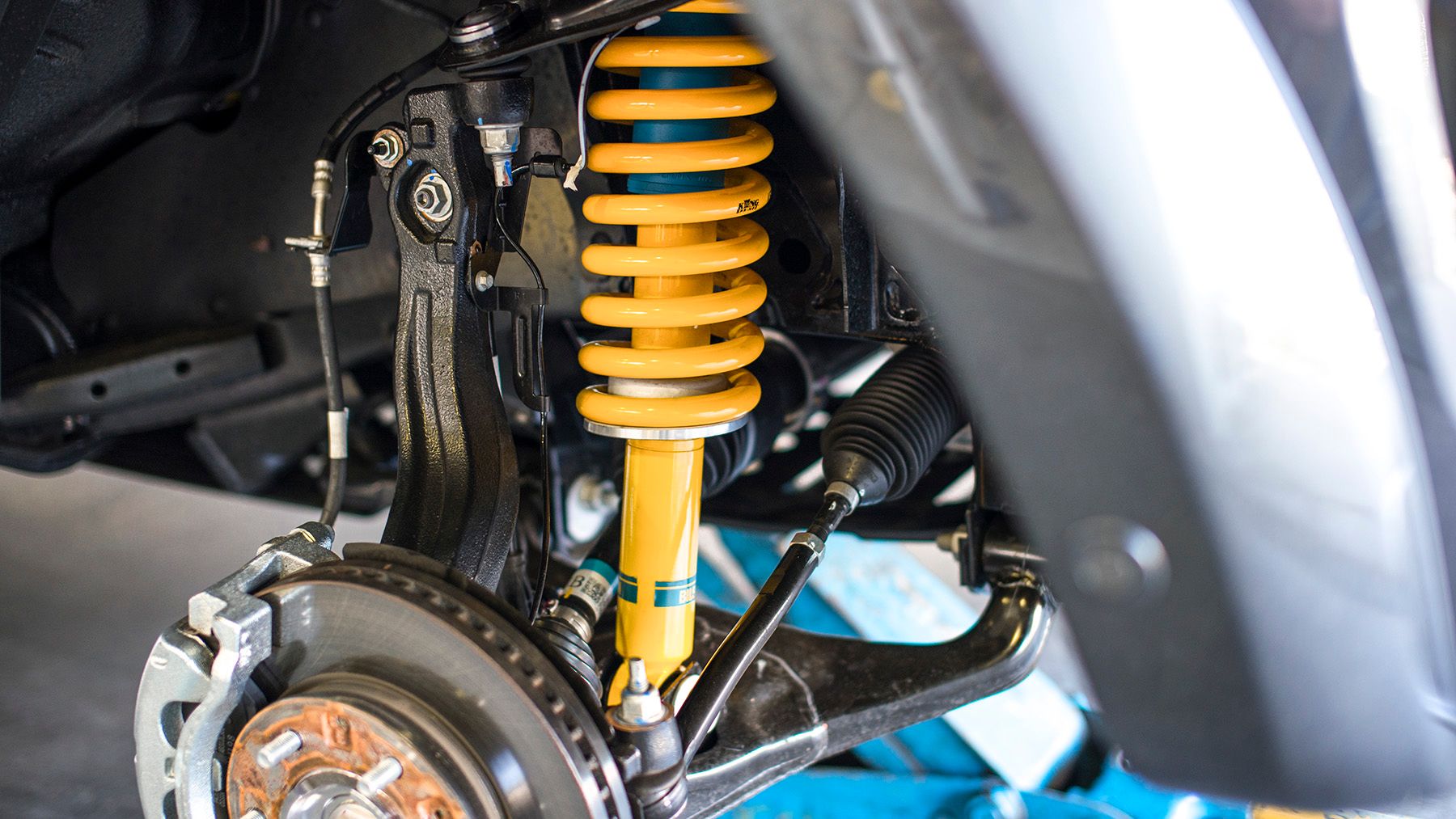

    The front strut assemblies are supplied fully assembled by Wilkinson Suspension in Australia, with Bilstein B6 struts, matched King Springs raised front coils, new top mounts and assembly labour. You receive assembled units rather than loose front strut parts.

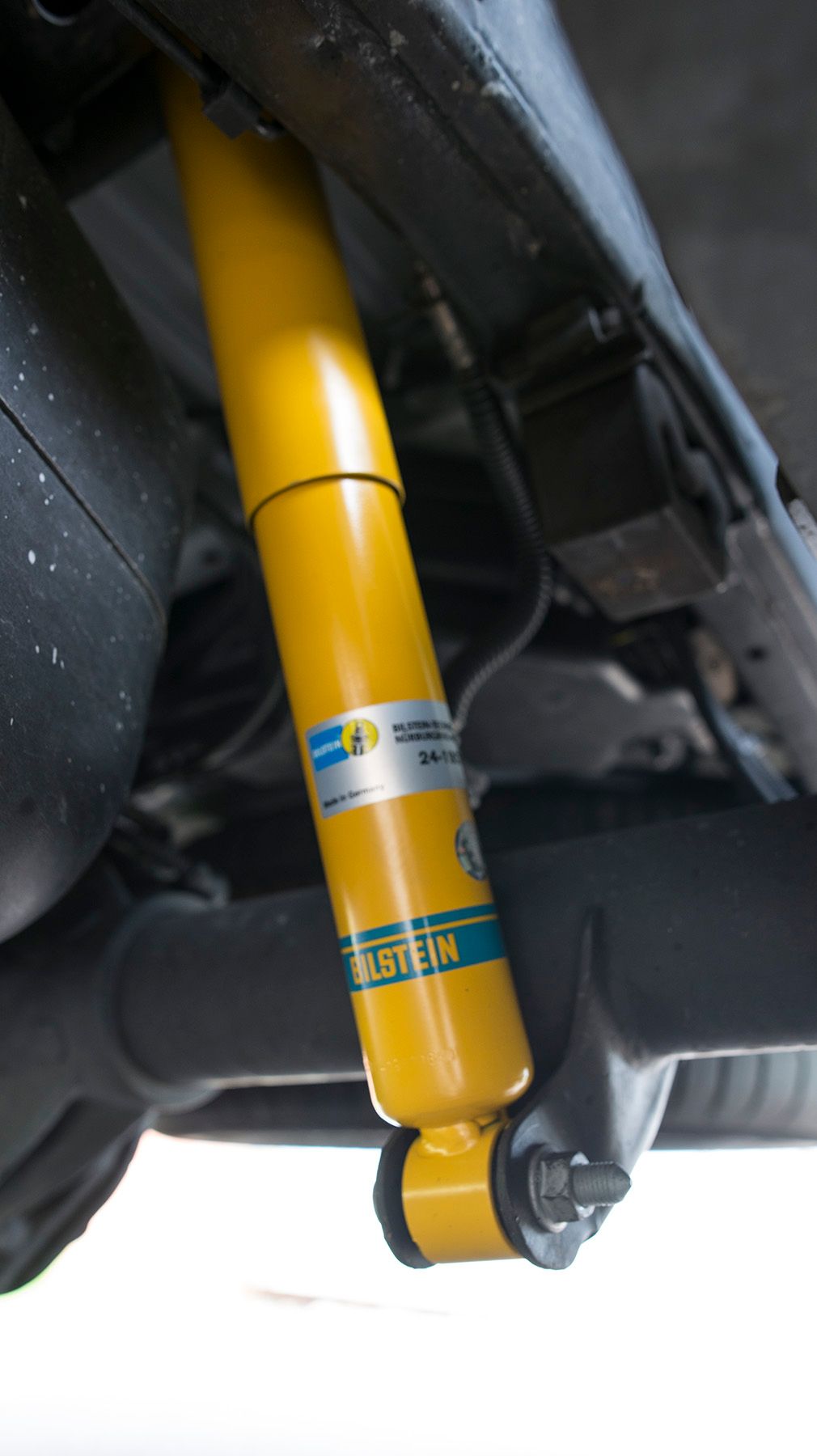

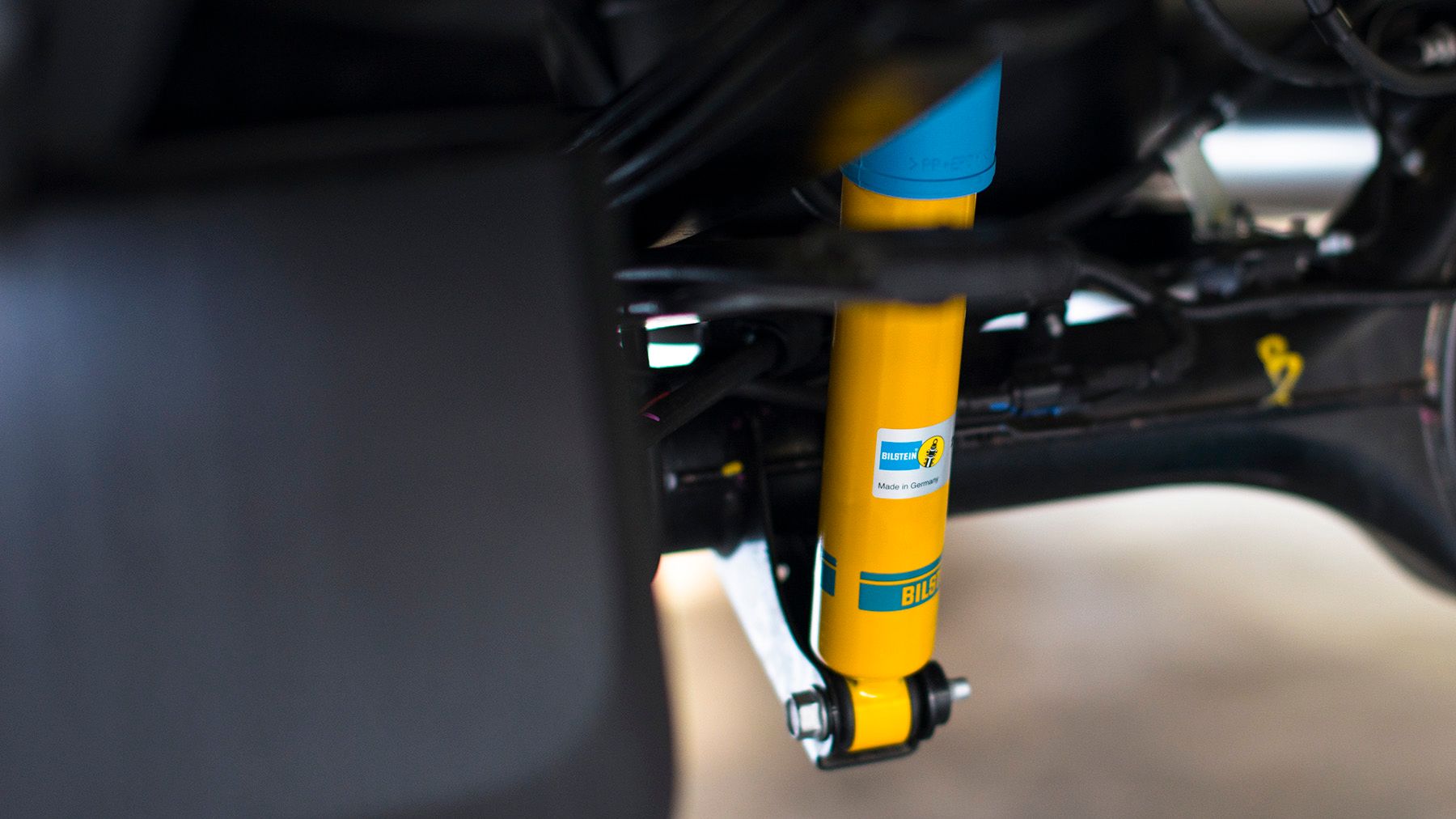

    At the rear, Australian-supplied Bilstein B6 shock absorbers are paired with RAW 4x4 leaf springs sourced locally through Autolign NZ. This arrangement helps keep bulky rear spring supply within New Zealand and gives you three options for different constant loads.

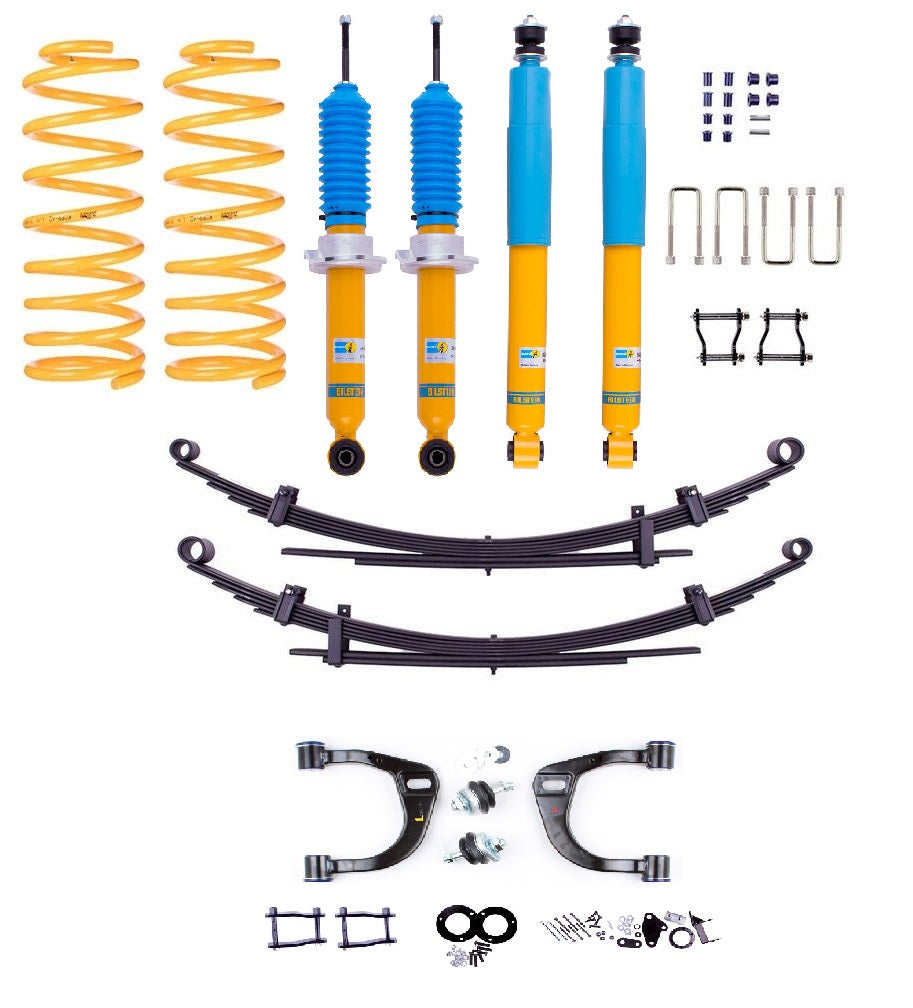

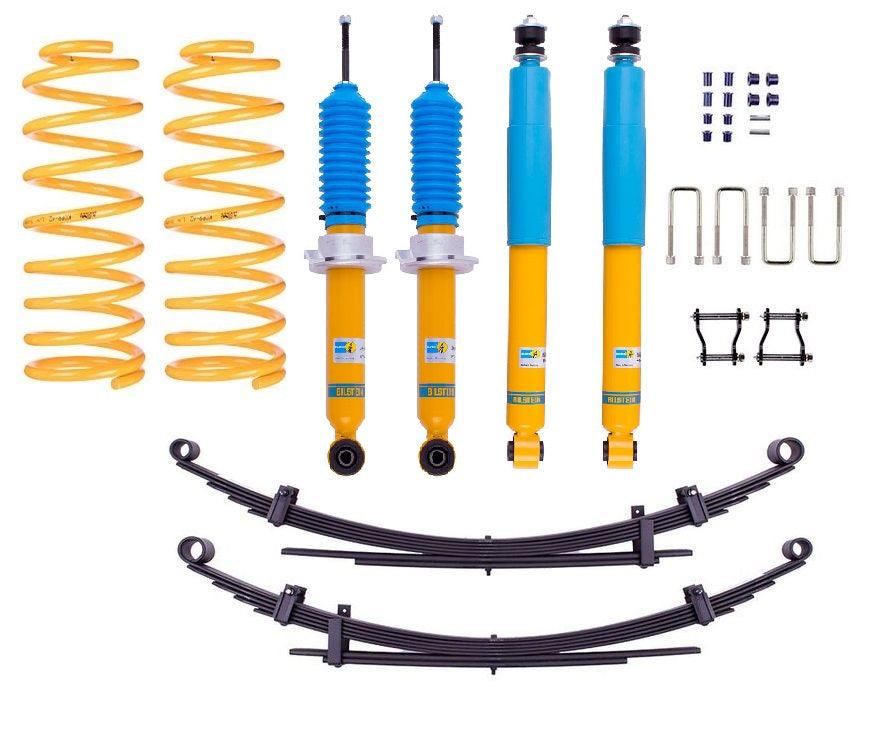

    Exactly what is included

    • 2 × fully assembled Bilstein B6 front strut assemblies, with matched King Springs front coils and new top mounts

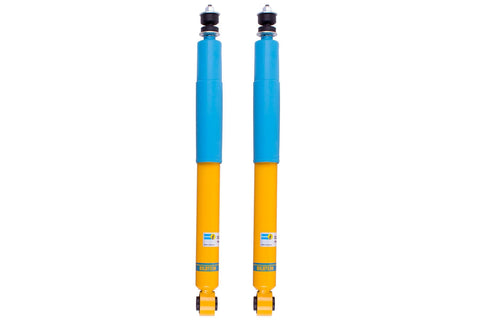

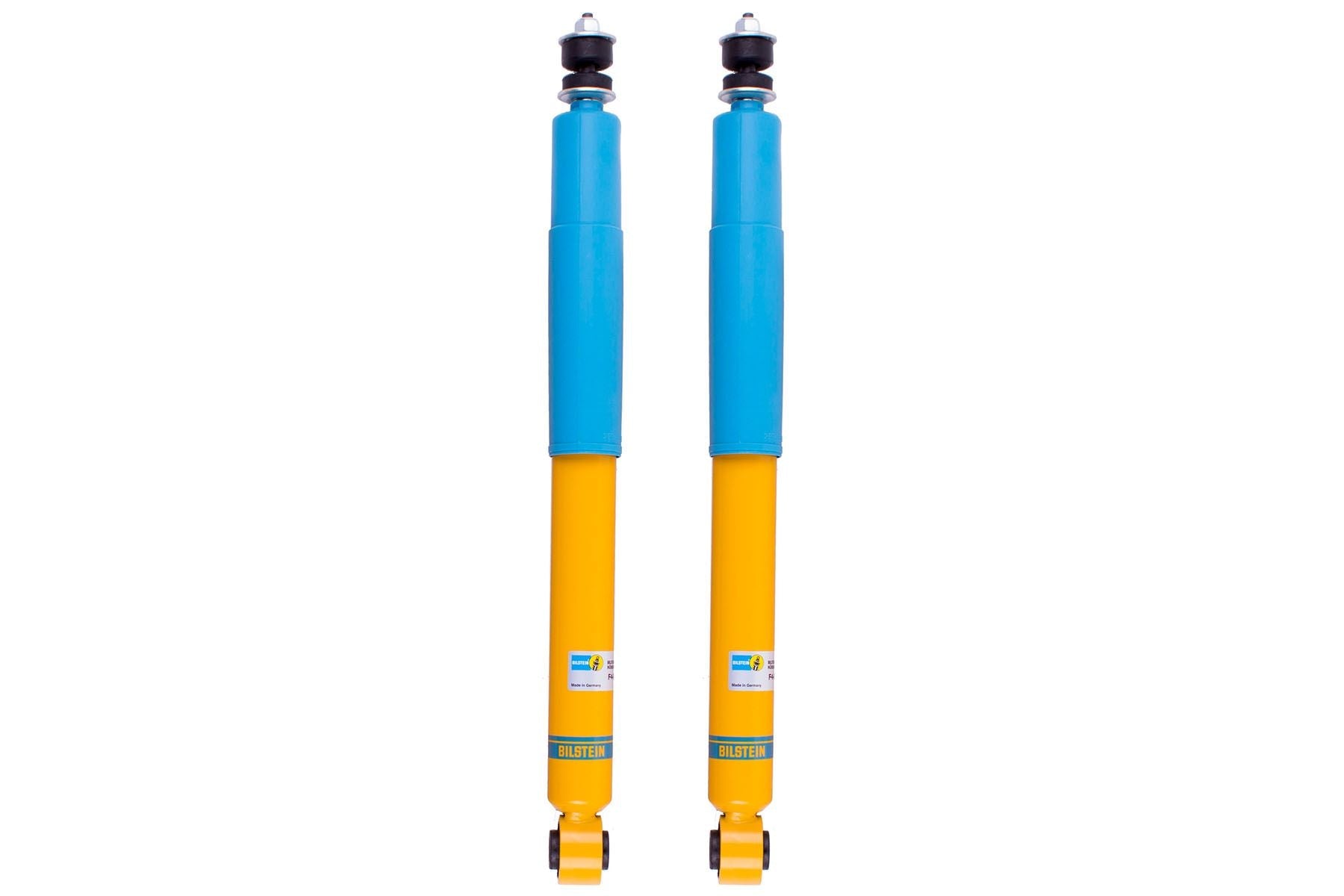

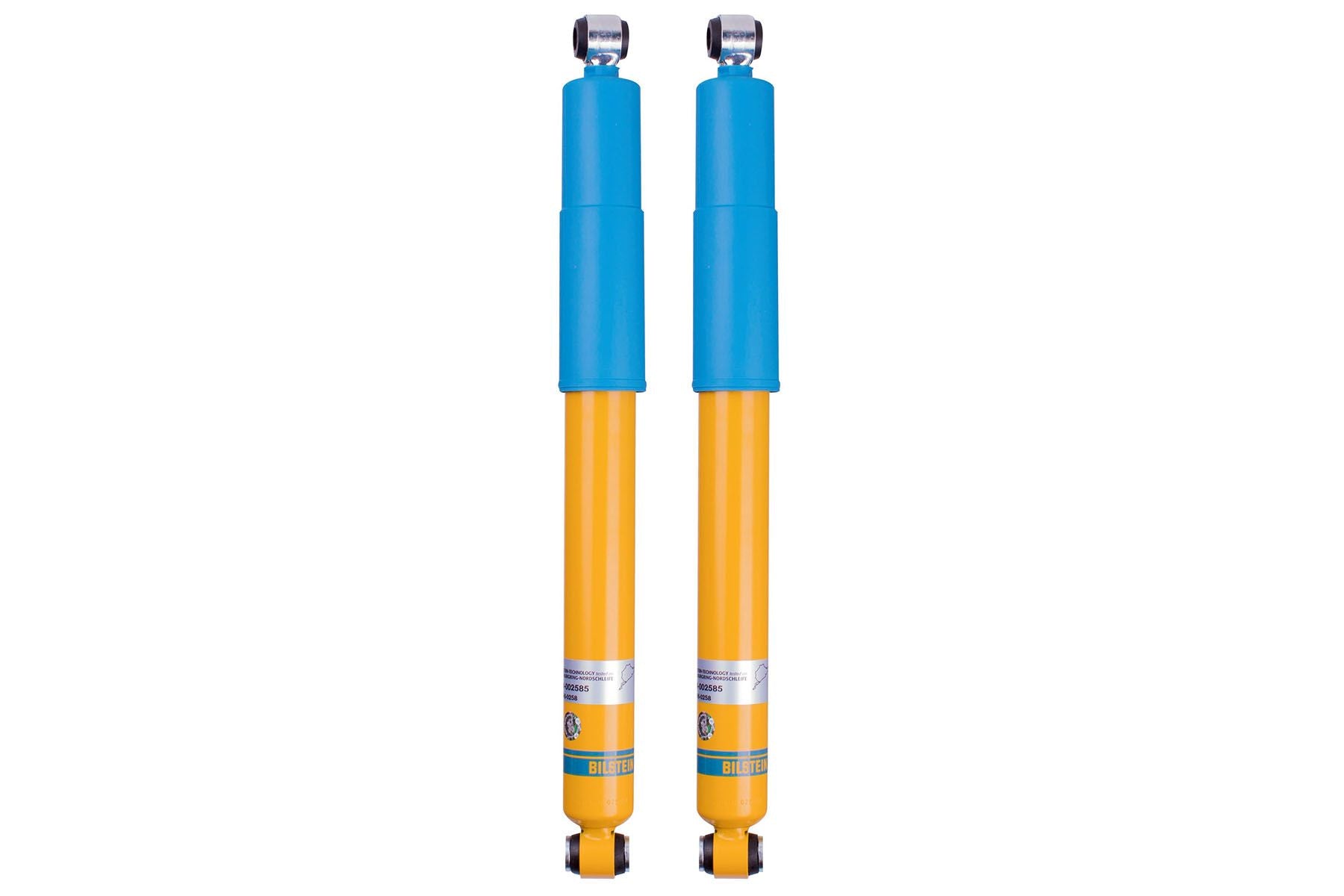

    • 2 × Bilstein B6 rear shock absorbers (BIL-BE5 D564)
    • 2 × RAW 4x4 raised rear leaf springs to suit your chosen constant-load option
    • 1 × KIT096SK rear shackle/pin and bush fitting kit, plus 4 × U005 U-bolts
    • 75 mm front suspension configuration — CSS04-15 15 mm spacer pair, DDHIL differential drop and UCA HILUX/UCA04 adjustable upper control arm pair are included

    Front accessory load options

    • No accessories / LI: KTFR-101 raised front springs
    • Steel bullbar / ME: KTFR-101H front springs, selected for the relevant accessory load
    • Steel bullbar and winch / EX: KTFR-101HHD front springs for heavier front accessory load

    RAW 4x4 rear load options — sourced in New Zealand

    • 0–200 kg: 2 × RAW RL877, KIT096SK and 4 × U005
    • 200–400 kg constant: 2 × RAW RL878, KIT096SK and 4 × U005
    • 400 kg+ constant: 2 × RAW RL969, KIT096SK and 4 × U005

    Rear leaf springs provide an approximate 40–45 mm raised ride height, depending on the model, fitted accessories, age and constant load. The advertised front lift height does not imply a 75 mm rear lift. Rear spring load ratings do not increase Toyota axle or GVM limits.

    75 mm front lift configuration

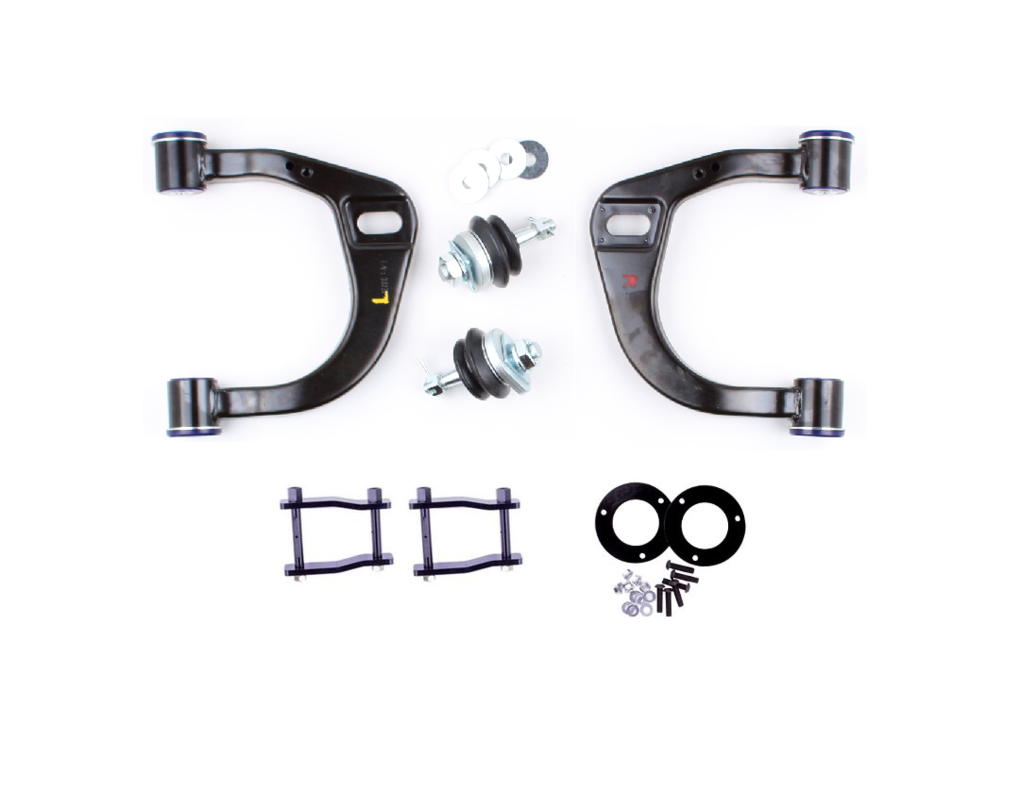

    This taller front lift package includes CSS04-15 15 mm coil strut spacers, DDHIL differential drop and UCA HILUX/UCA04 adjustable upper control arms. Additional checks for CV angles, bump and droop travel, steering geometry, clearances, alignment and New Zealand certification are important.

    Fitment and NZ supply

    For applicable Toyota Hilux KUN26 / N70 4WD vehicles (2005–2015). Confirm the exact vehicle, front accessories and permanent rear loads before ordering. Actual lift depends on vehicle setup and installation. Check New Zealand LVV certification requirements for your intended configuration, particularly higher lifts; professional installation and alignment are recommended.

    Wilkinson supplies the assembled front struts, rear shocks and the 75 mm geometry components where selected. PPD Performance NZ sources the RAW rear leaf packs and fitting components locally through Autolign. Current availability and collection or dispatch arrangements within New Zealand depend on component supply.

    Installation, alignment, certification and other correction parts not expressly listed are not included.
